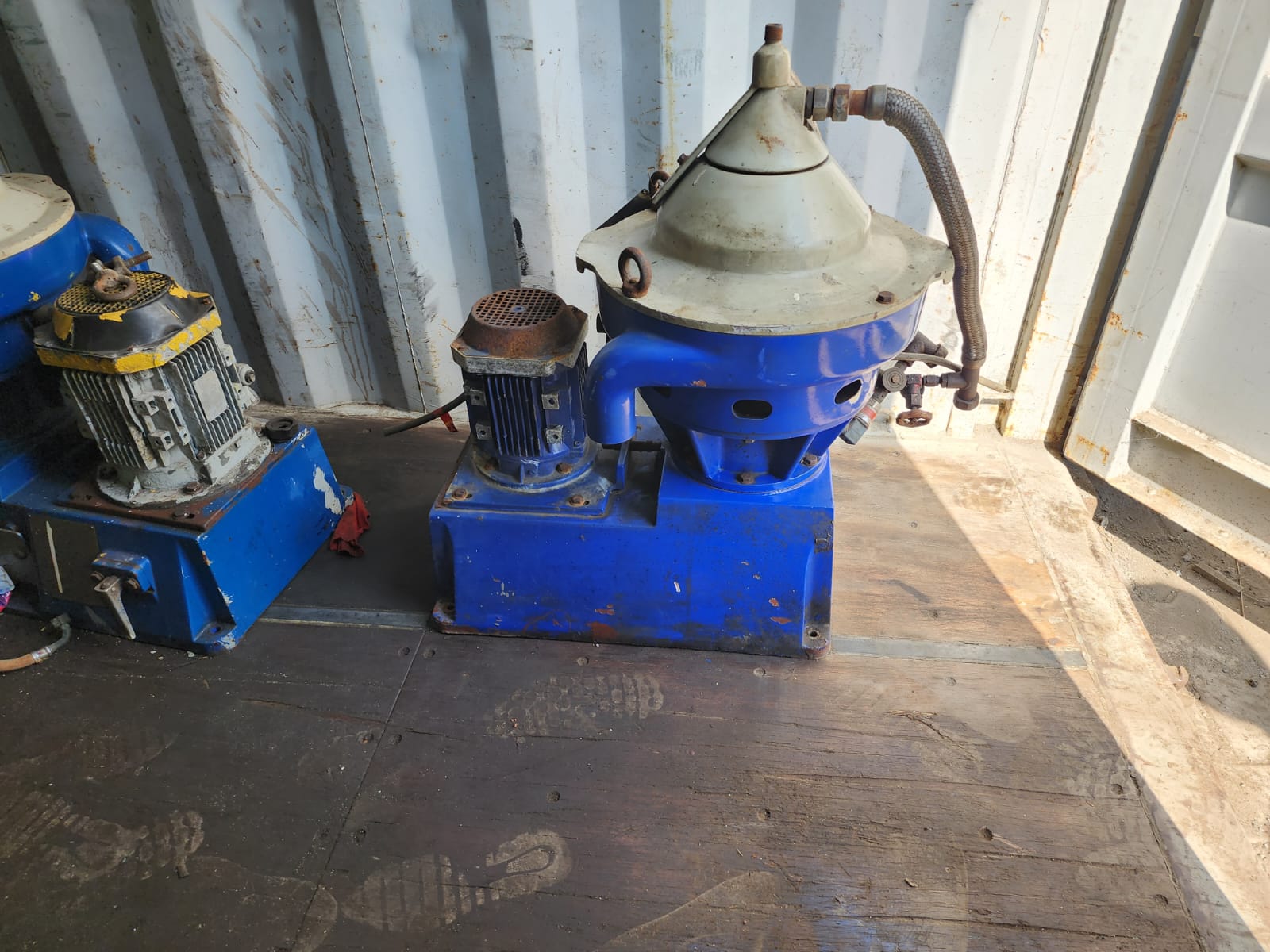

ALFA LAVAL – P – 605 – CENTRIFUGAL SEPARATORS
The Alfa Laval P 605 centrifugal separator is a high-performance marine disc stack centrifugal separator unit engineered to purify fuel oil, clear lubricating oil, and separate water and solid contaminants across commercial merchant vessels, power generation plants, and industrial processing facilities. Built to world-class maritime manufacturing standards, this heavy-duty industrial marine oil purifier separator assembly features a precision-machined bowl housing and high-efficiency disc stack designed to withstand intense centrifugal forces, continuous mechanical stress, and harsh engine room environments. Ideal for fuel treatment system retrofits and marine maintenance overhauls, the Alfa Laval P-series separator package delivers maximum separation efficiency, reduced engine component wear, minimized maintenance downtime, and long-term continuous-duty performance across critical maritime and industrial fluid purification infrastructures.
Specification
Overview
| TYPE | P – 605 |
|---|---|
| MAX SPEED | 9307 R/MIN |
| SPEED MOTOR SHAFT | 3600 R/MIN |
| FREQUENCY | 60 Hz |
| POWER | 2.5 KW |
| DENSITY | 1000 KG/M³ – 2681 KG/M³ |
| TEMPERATURE | 0 / 100 °C |

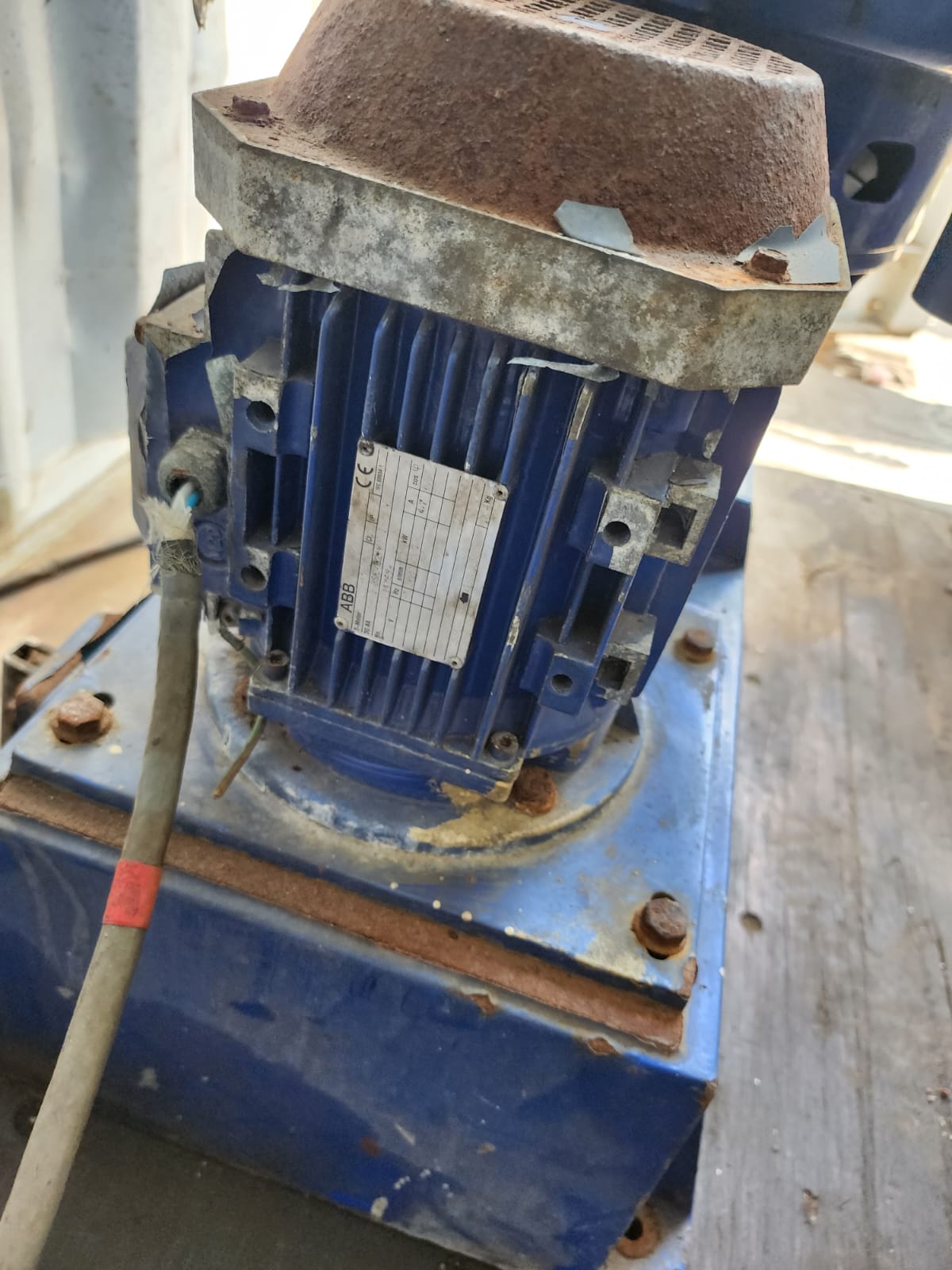

| MOTOR TYPE | M2AA 90L |
| VOLTAGE | 440 – 480 V |
