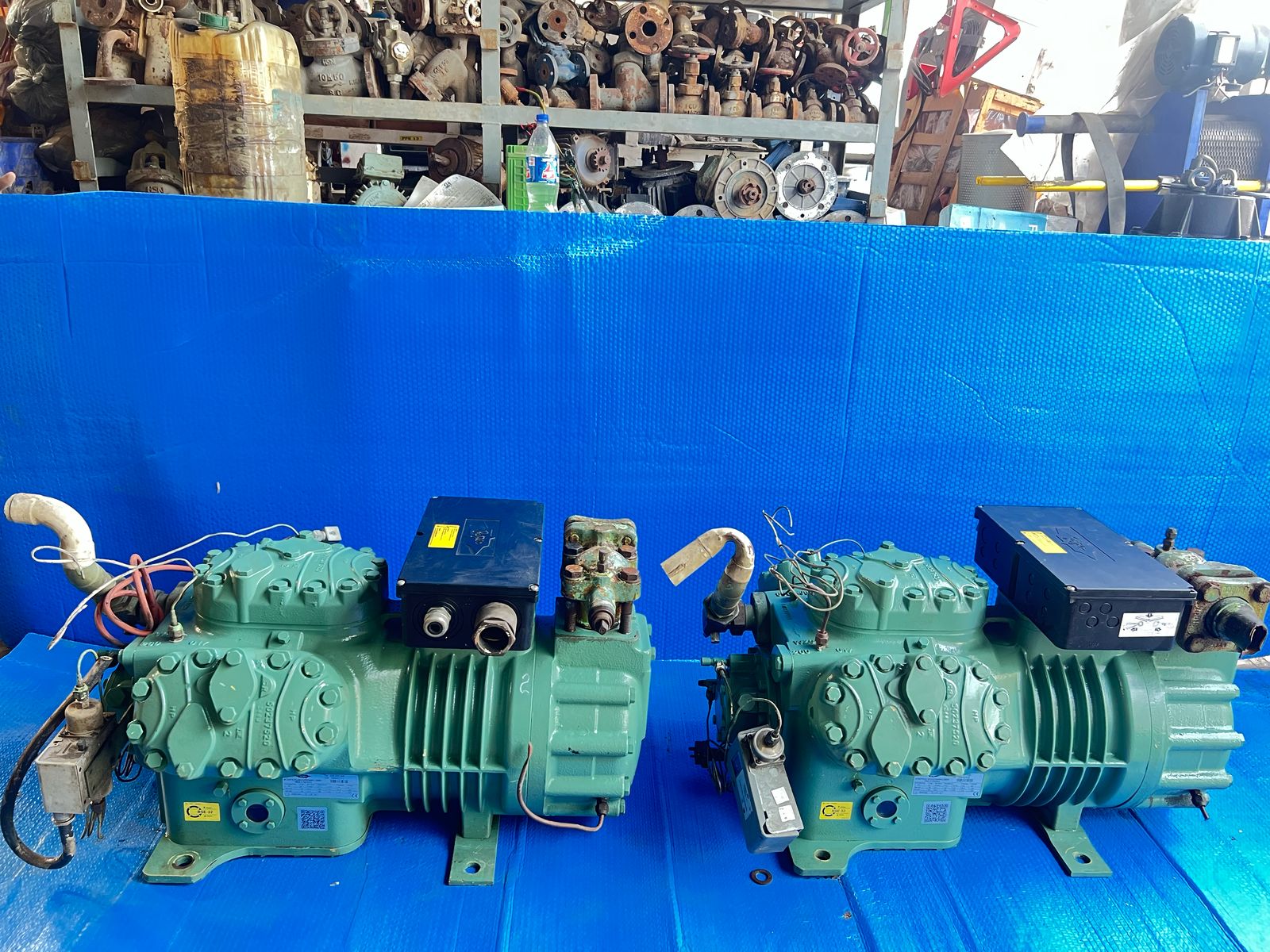

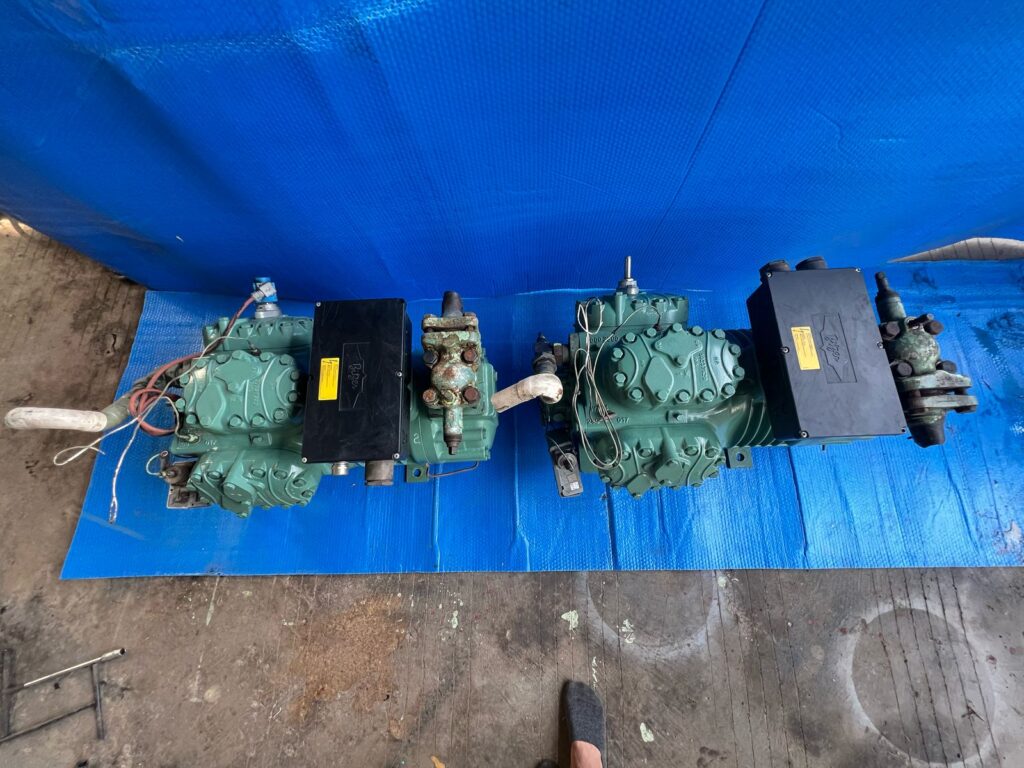

BITZER – 6JE-33Y-40P – REFRIGERATION COMPRESSOR
The BITZER 6JE-33Y-40P Semi-Hermetic Reciprocating Refrigeration Compressor is a heavy-duty, German-engineered 6-cylinder compressor built for commercial and industrial refrigeration systems. Running on 380–420V (50 Hz) and 440–480V (60 Hz) 3-phase power with a 53.2A maximum operating current, this powerful unit delivers displacement capacities of 95.3 m³/h at 1450 RPM and 115.0 m³/h at 1750 RPM. Pressure-rated for 19 bar (low side) and 32 bar (high side) with IP54 protection, the Bitzer 6JE-33Y-40P ensures superior cooling efficiency and operational reliability. Ideal for cold storage facilities, marine HVAC, and process cooling, it offers exceptional energy efficiency and durability.
Specification
Overview
| TYPE | 6JE-33Y-40P |
|---|---|
| PROTECTION CLASS | IP 54 |
| VOLTAGE / PHASE (50 HZ) | 380-420 V, 3 PHASE |
| VOLTAGE / PHASE (60 HZ) | 440-480 V, 3 PHASE |
| CURRENT | 53.2 A |
| STARTING CURRENT Y | 165 A |
| STARTING CURRENT YY | 275 A |
| DISPLACEMENT / FLOW RATE (50 HZ @ 1450 RPM) | 95.3 M³/H |
| DISPLACEMENT / FLOW RATE (60 HZ @ 1750 RPM) | 115.0 M³/H |
| OPERATING SPEED (50 HZ) | 1450 RPM |
| OPERATING SPEED (60 HZ) | 1750 RPM |
| MAXIMUM PRESSURE | 19 BAR (LOW PRESSURE SIDE) / 32 BAR (HIGH PRESSURE SIDE) |
