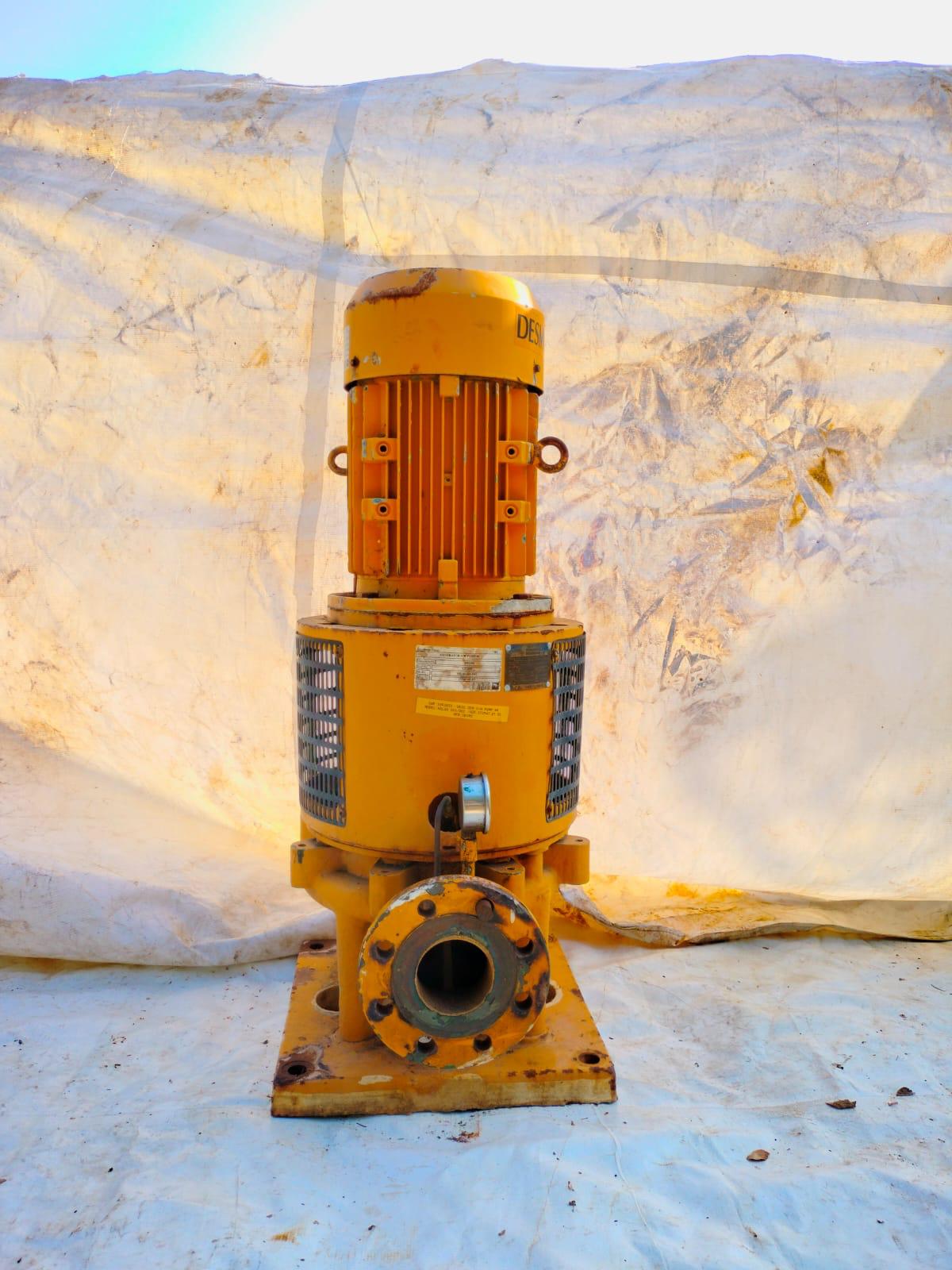

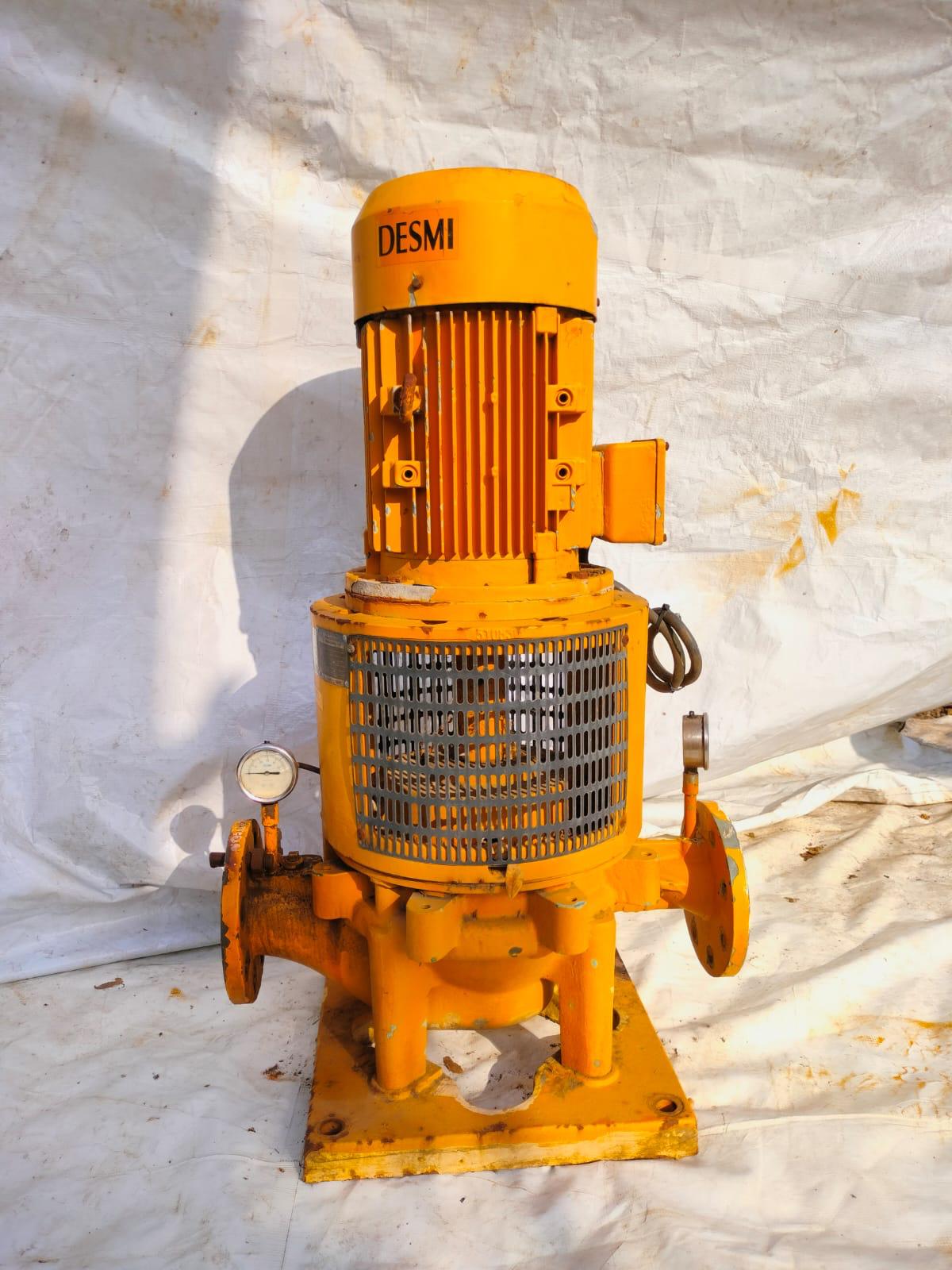

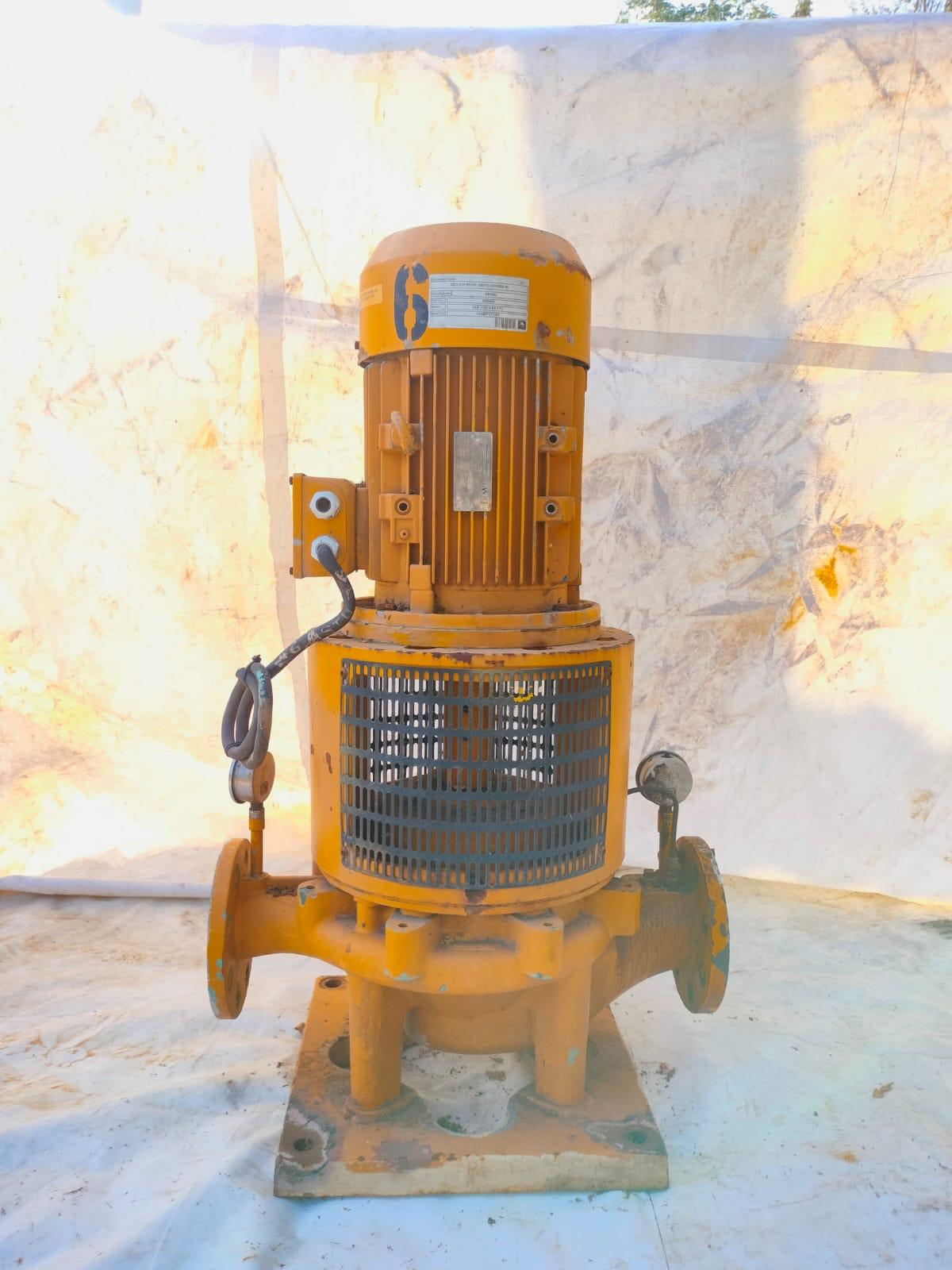

DESMI – NSL80-265/D02 – VERTICAL IN-LINE CENTRIFUGAL PUMP
The DESMI NSL80-265/D02 vertical in-line centrifugal pump is a high-performance marine centrifugal pump designed for continuous seawater cooling, freshwater transfer, ballast service, and general utility service aboard commercial vessels and offshore installations. Built with a compact vertical in-line configuration, this heavy-duty DESMI NSL series pump features an 80 mm nominal suction/discharge branch size and a 265 mm impeller diameter for optimal hydraulic efficiency and low-maintenance operation. Engineered with corrosion-resistant marine materials, the DESMI NSL80-265/D02 marine cooling pump delivers high volumetric flow, superior priming stability, and reliable long-term performance under demanding operating conditions.
Specification
Overview

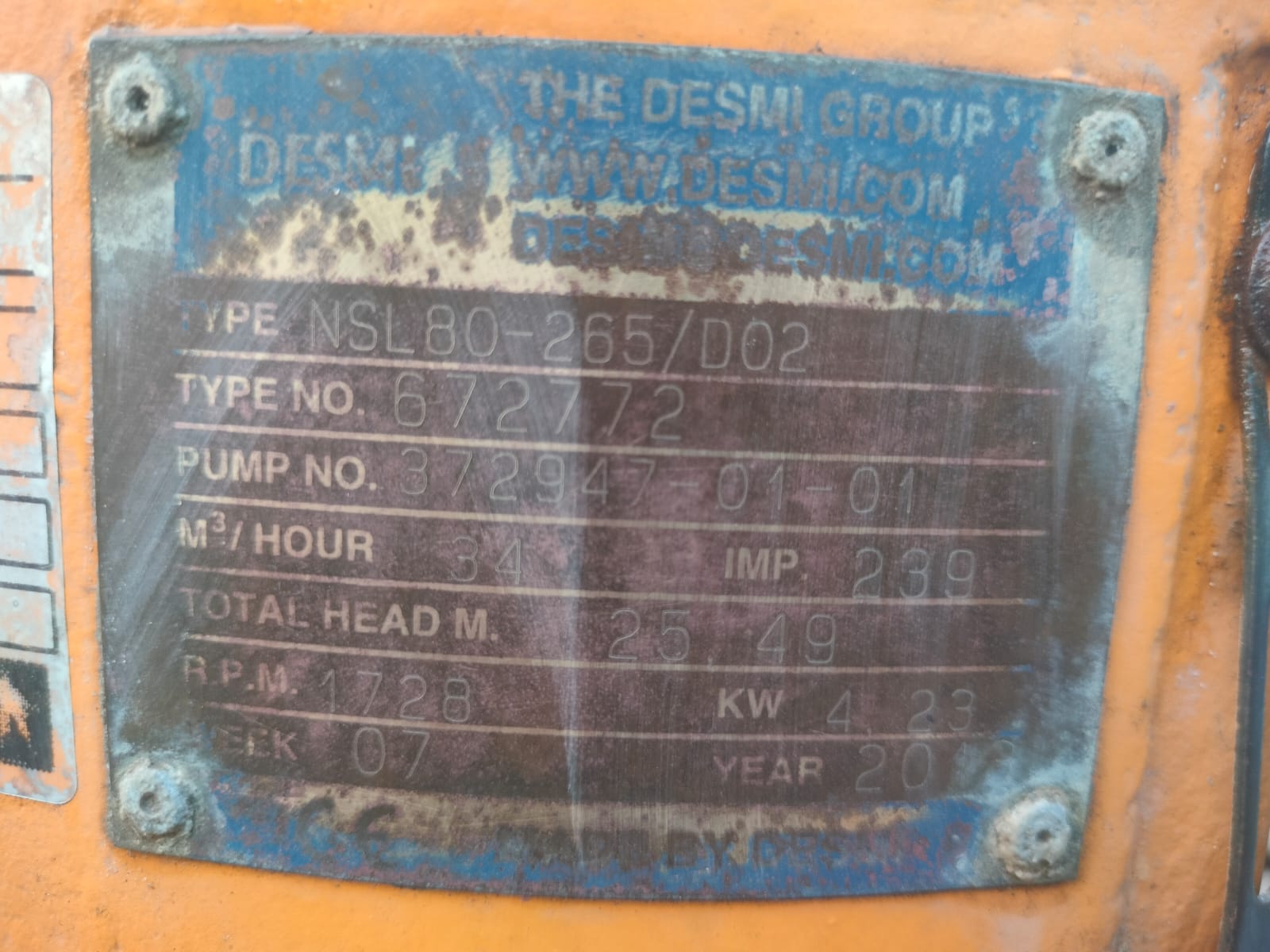

| TYPE | NSL80-265/D02 |
|---|---|
| CAPACITY | 34 M³/H |
| TOTAL HEAD | 25.49 M |
| SPEED | 1728 RPM |
| BUILT YEAR | 2012 |

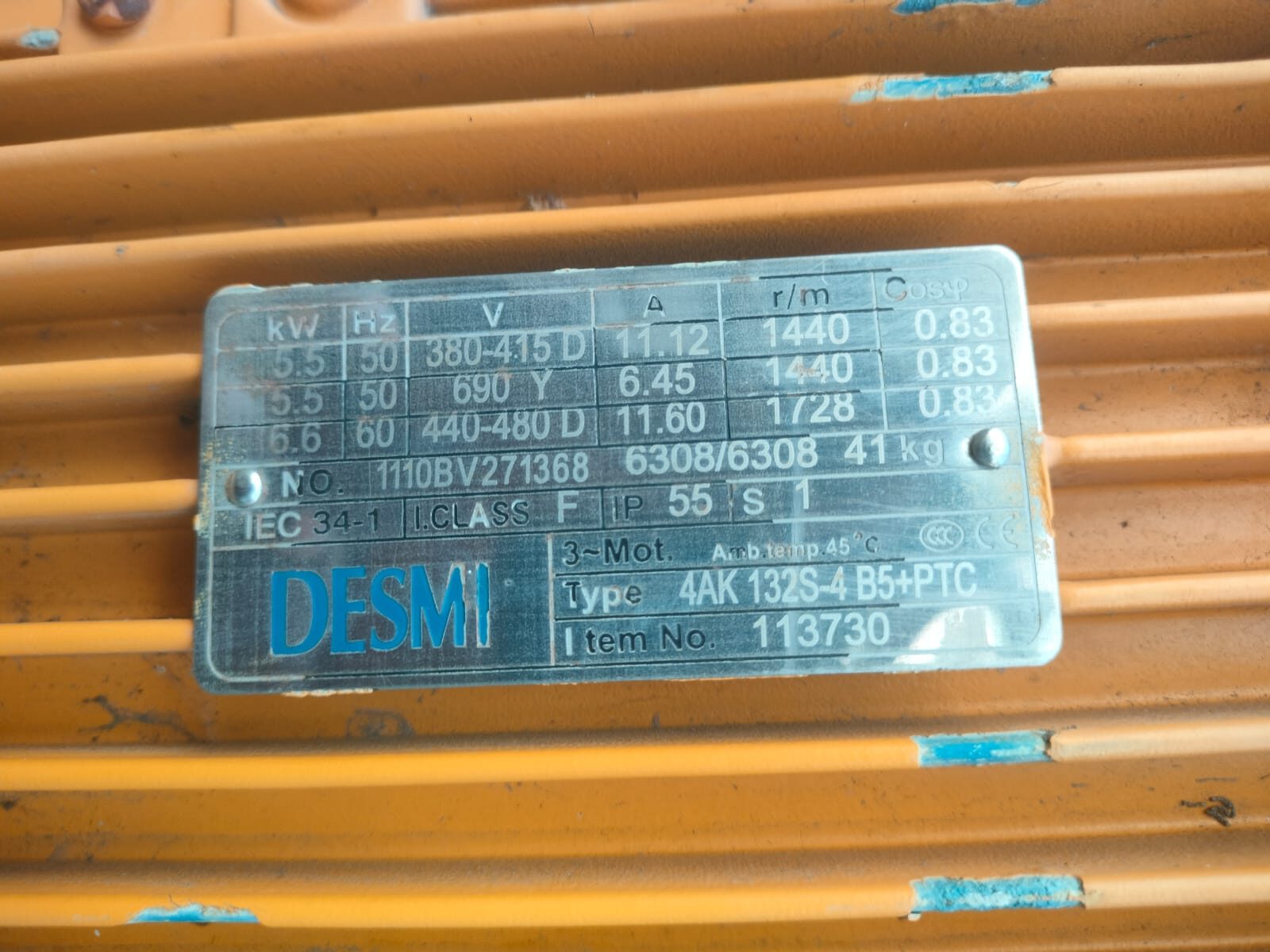

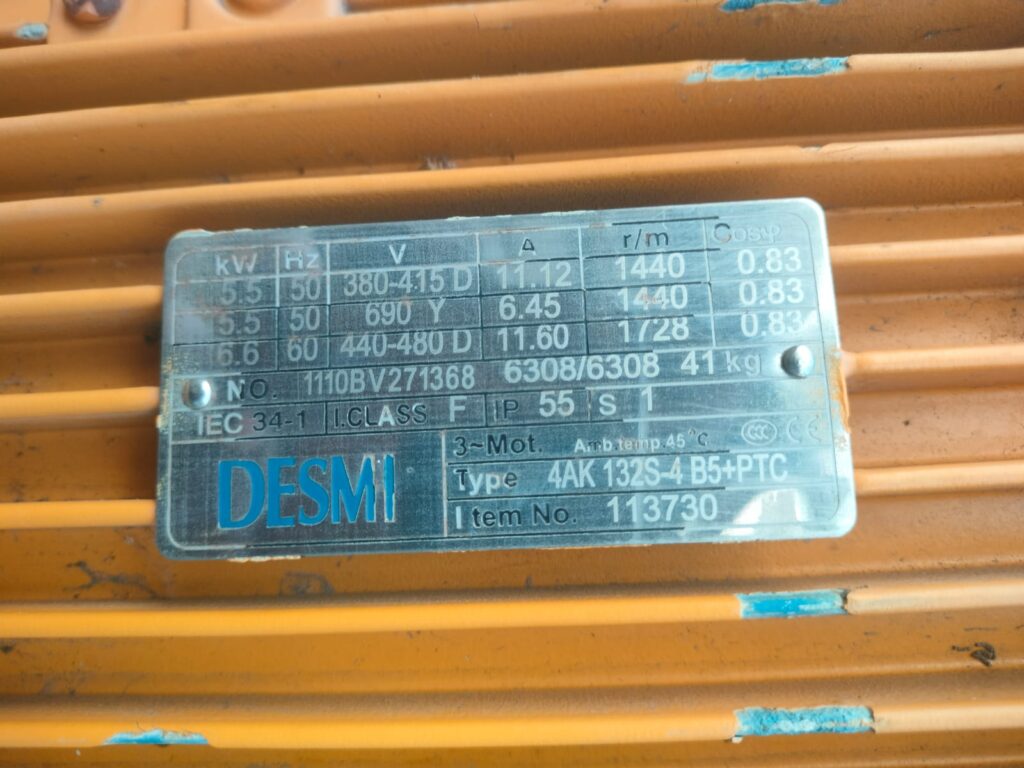

| MOTOR TYPE | 4AK 132S-4 B5+PTC |
| FREQUENCY | 50/60 Hz |
| VOLTAGE AT 50Hz | 380-415 V , 690 V |
| VOLTAGE AT 60Hz | 440-480 V |
| POWER AT 50 Hz | 5.5 kW |
| POWER AT 60 Hz | 6.6 kW |
| SPEED AT 50 Hz | 1440 RPM |
| SPEED AT 60 Hz | 1728 RPM |
