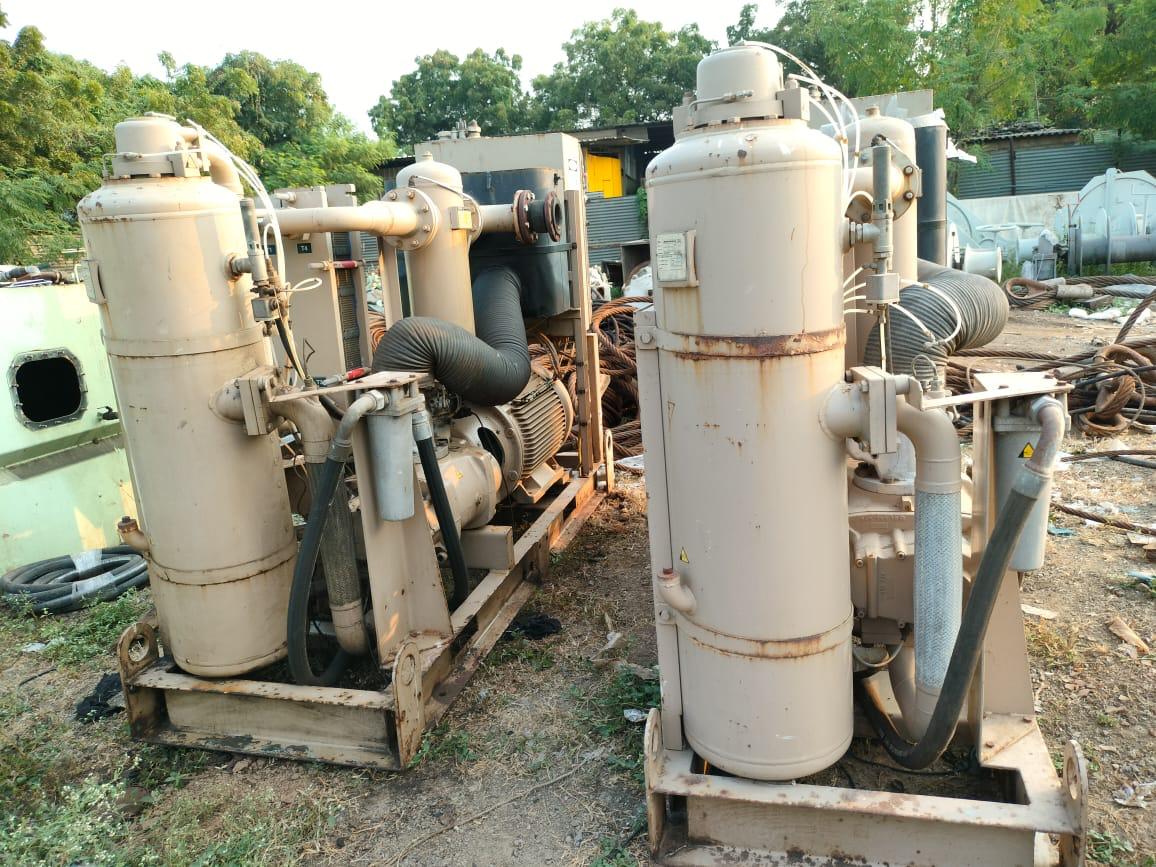

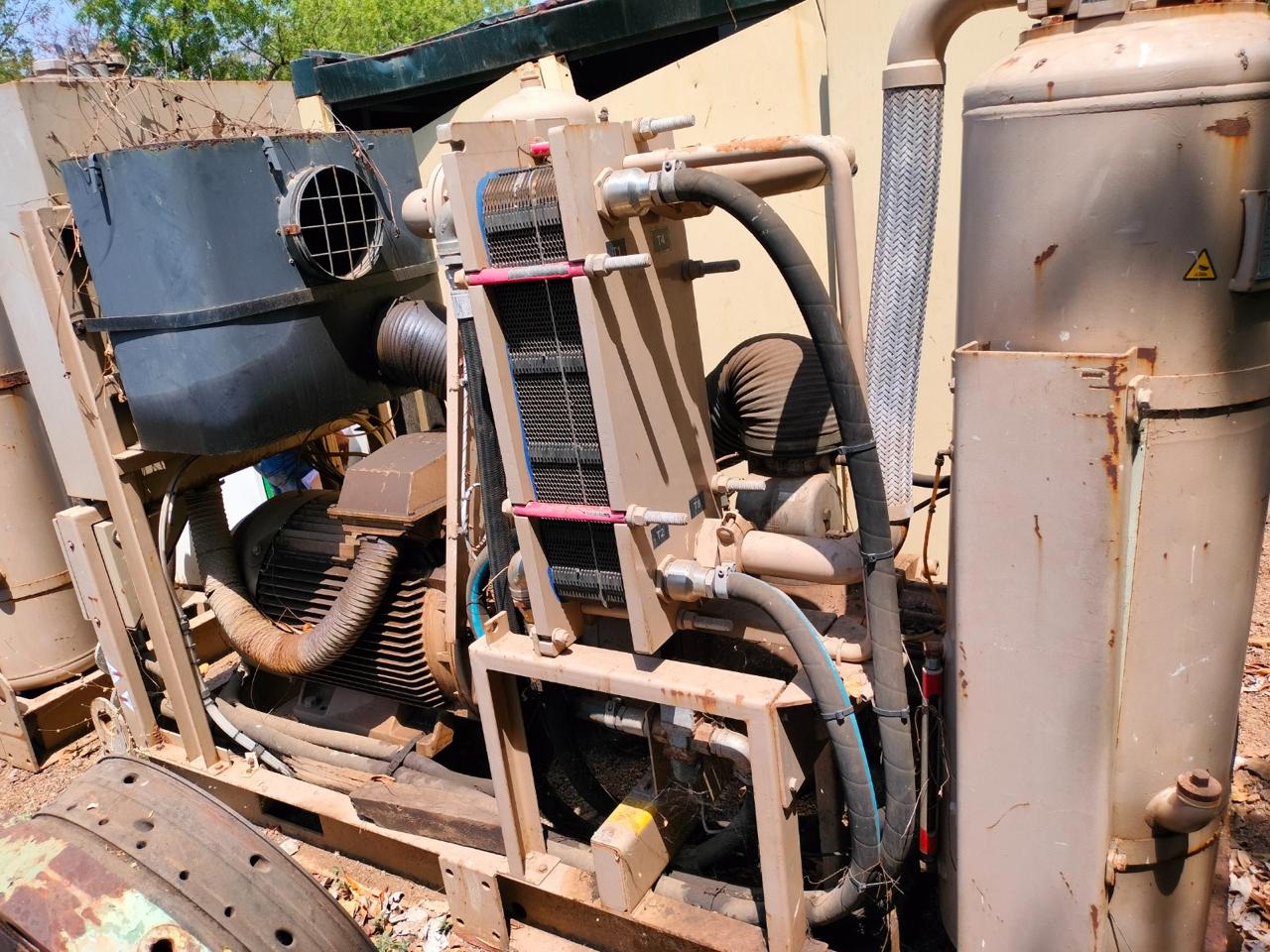

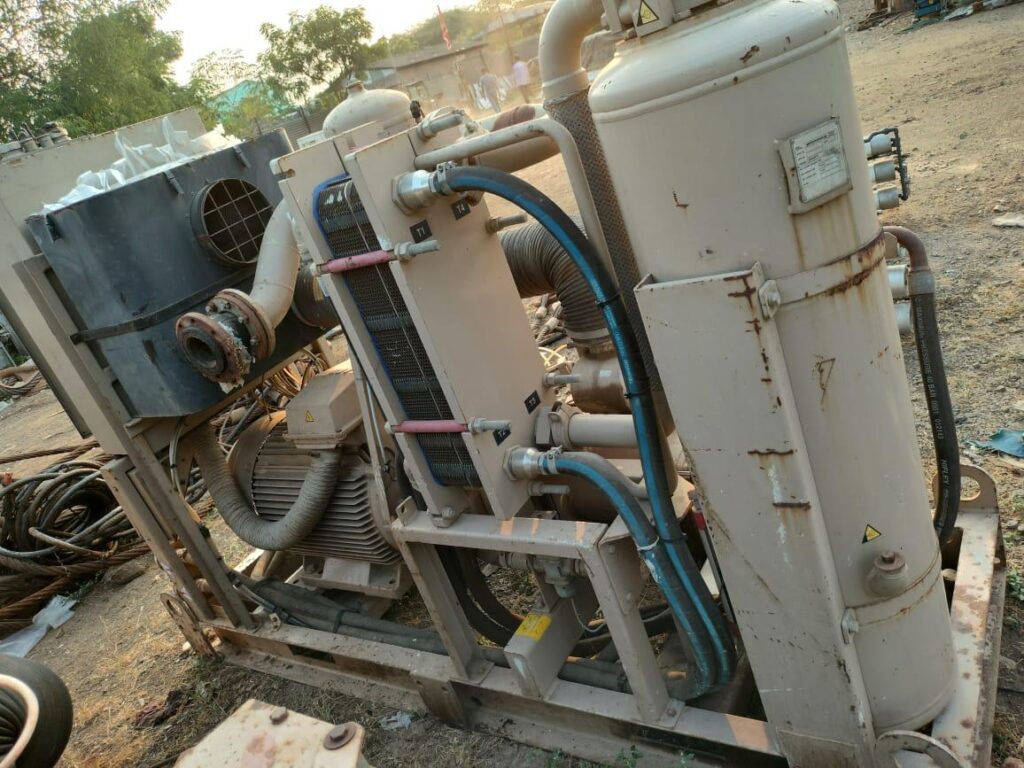

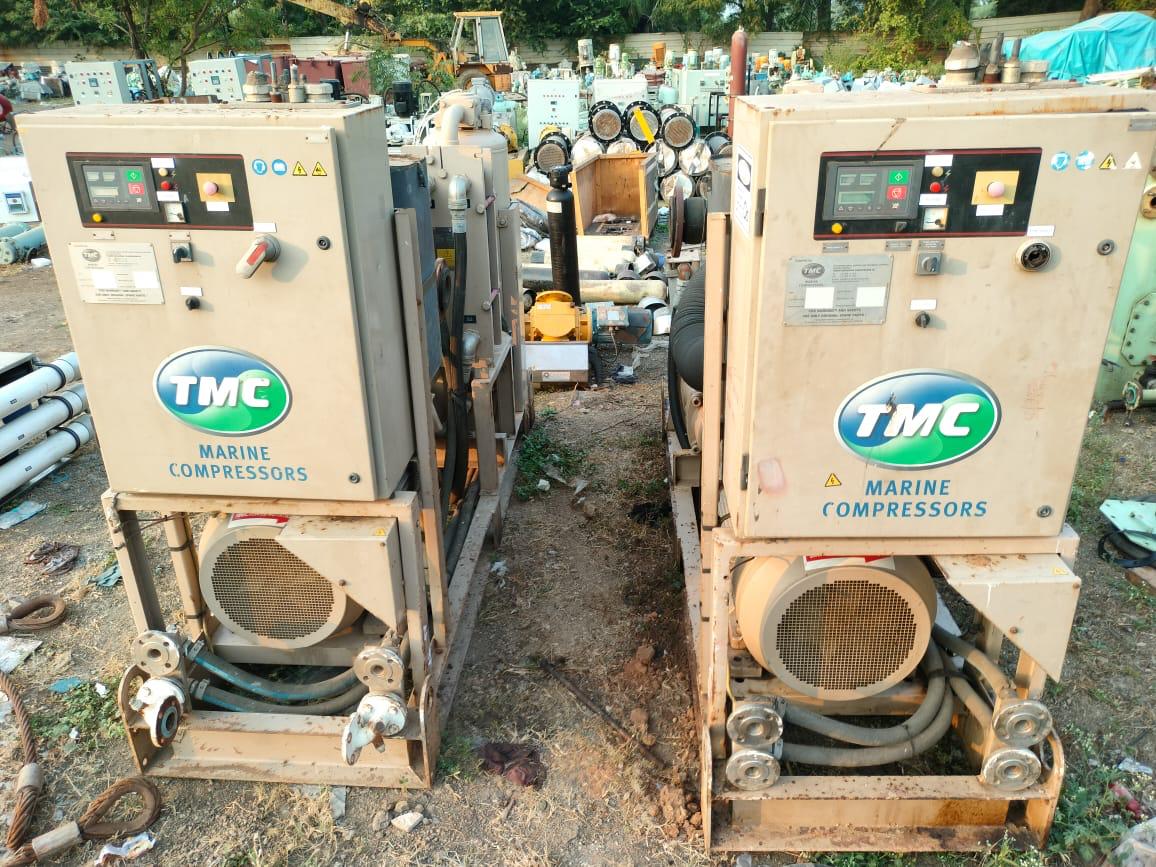

GARDNER – TMC – ULM 110-6 EWA – SCREW AIR COMPRESSOR
The Gardner Denver TMC ULM 110-6 EWA is an industry-leading marine rotary screw air compressor engineered for continuous duty, heavy-duty marine applications, and harsh offshore environments. Built by Tamrotor Marine Compressors (TMC), this single-stage, oil-lubricated marine air compressor delivers exceptional reliability, high air displacement, and optimal energy efficiency. Designed with a compact footprint, integrated cooling system, and durable marine-grade components, the TMC ULM 110-6 EWA screw compressor ensures low vibration, quiet operation, and minimal maintenance costs. It is the premier choice for vessel control air, instrument air, and demanding commercial marine air supply systems.
Specification
Overview

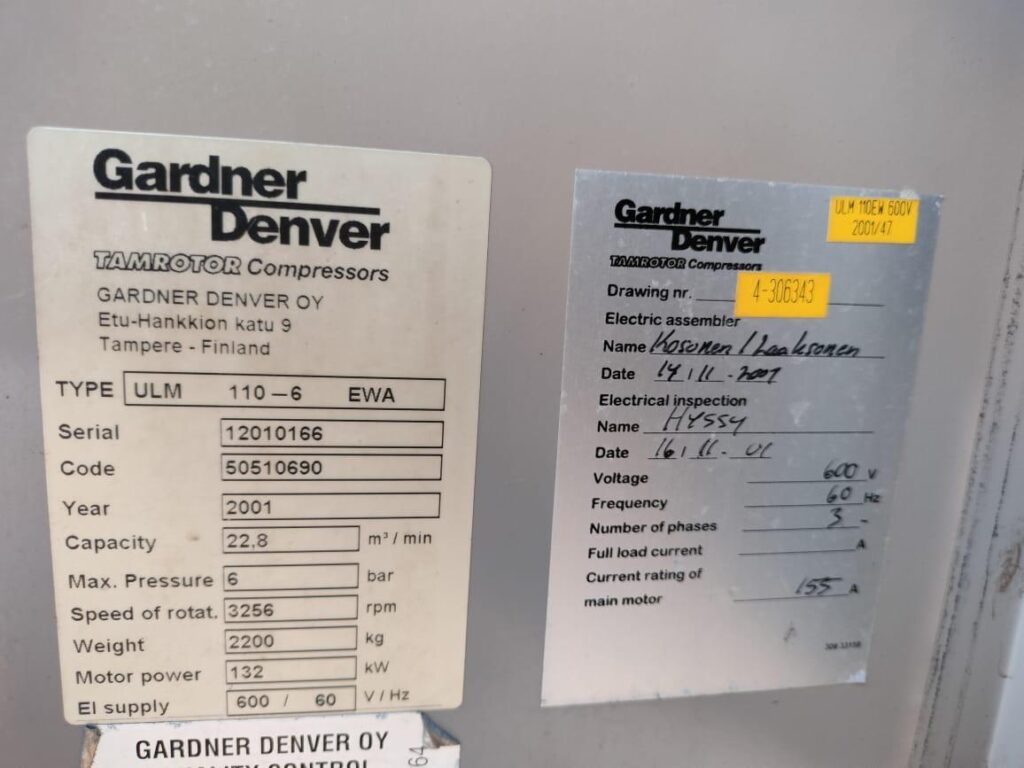

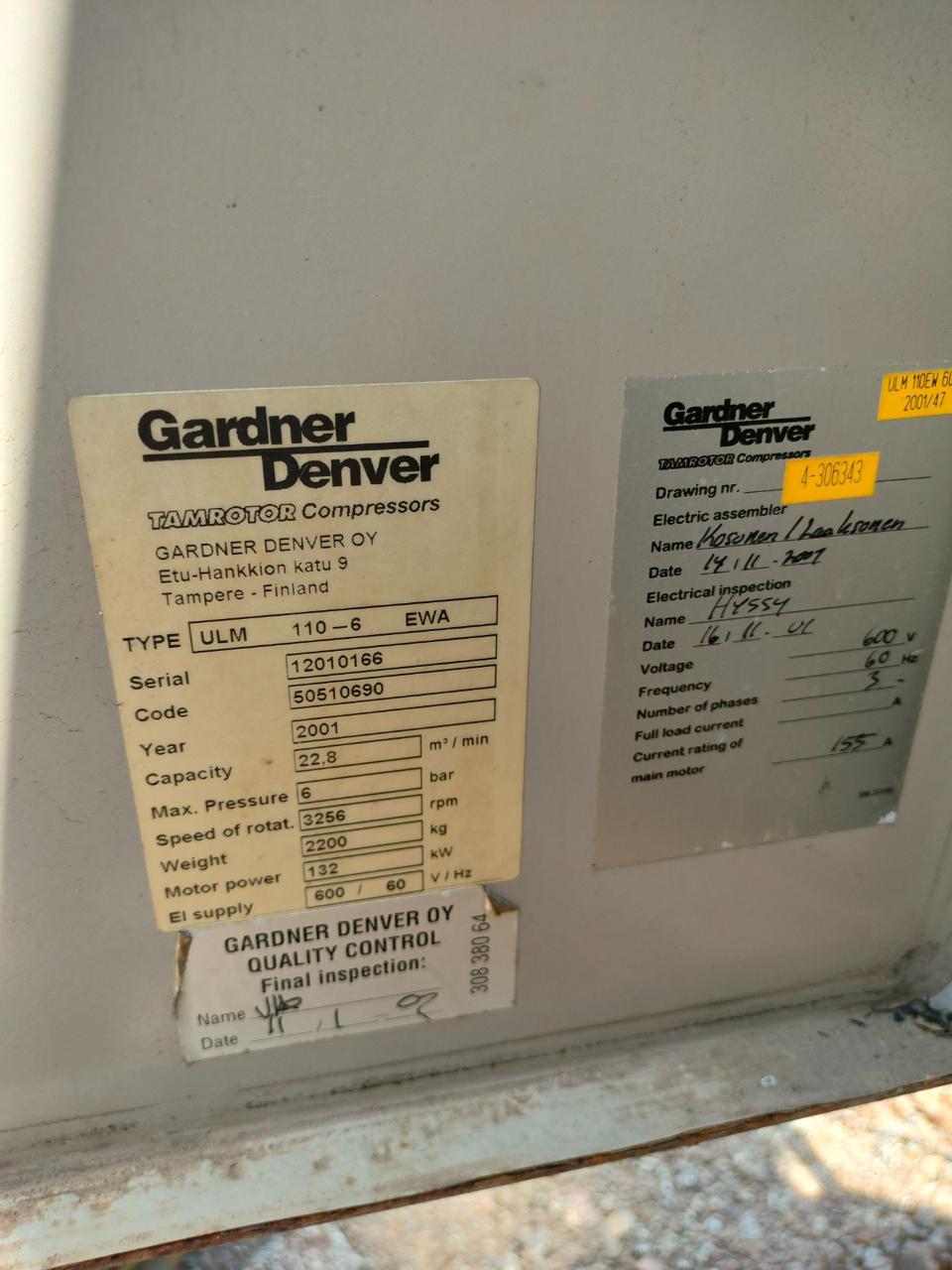

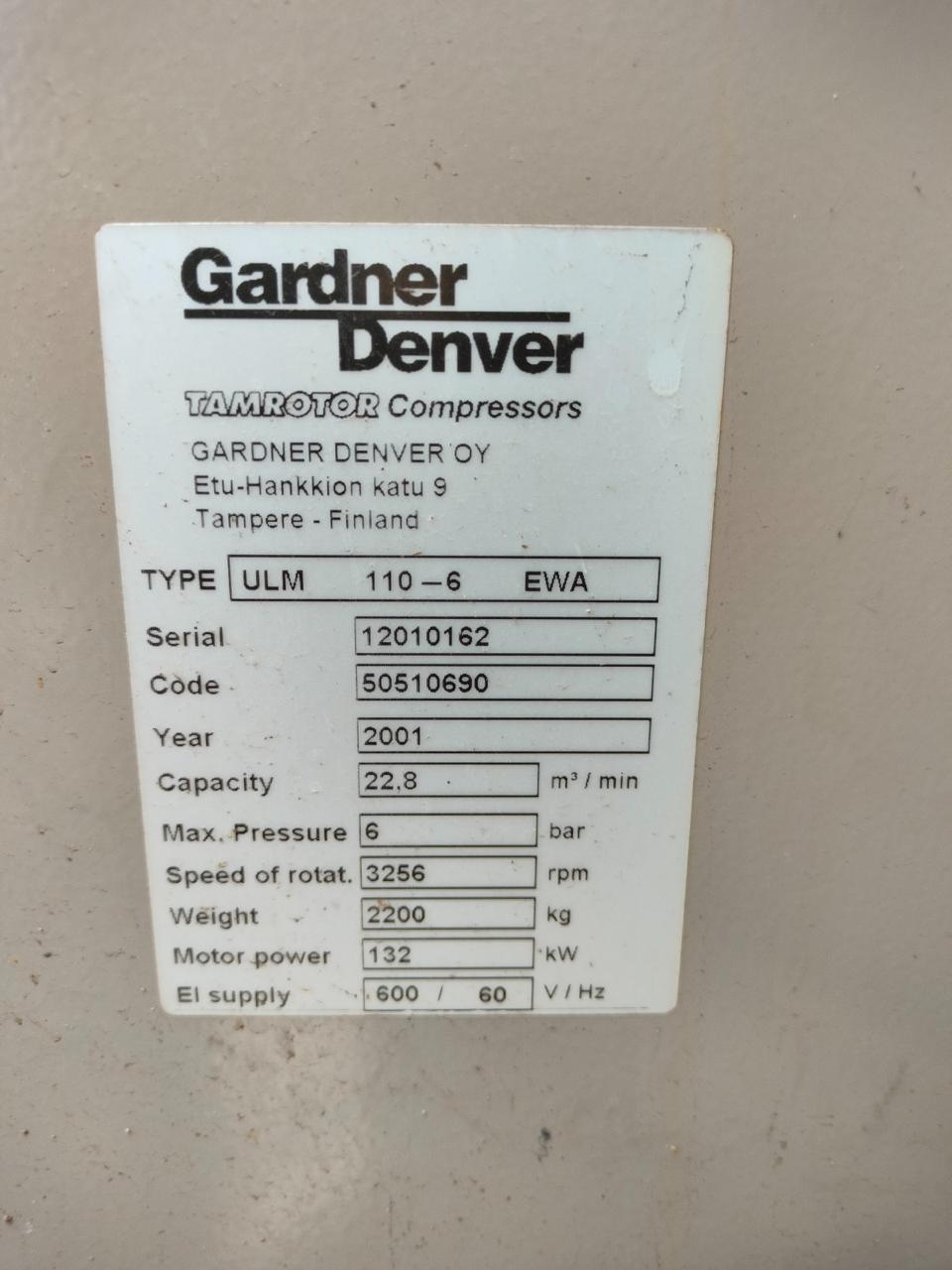

| TYPE | ULM 110-6 EWA |
|---|---|
| CAPACITY | 22.8 m³/min |
| PRESSURE | 6 BAR |
| SPEED | 3256 RPM |
| UNIT WEIGHT | 2200 KG |

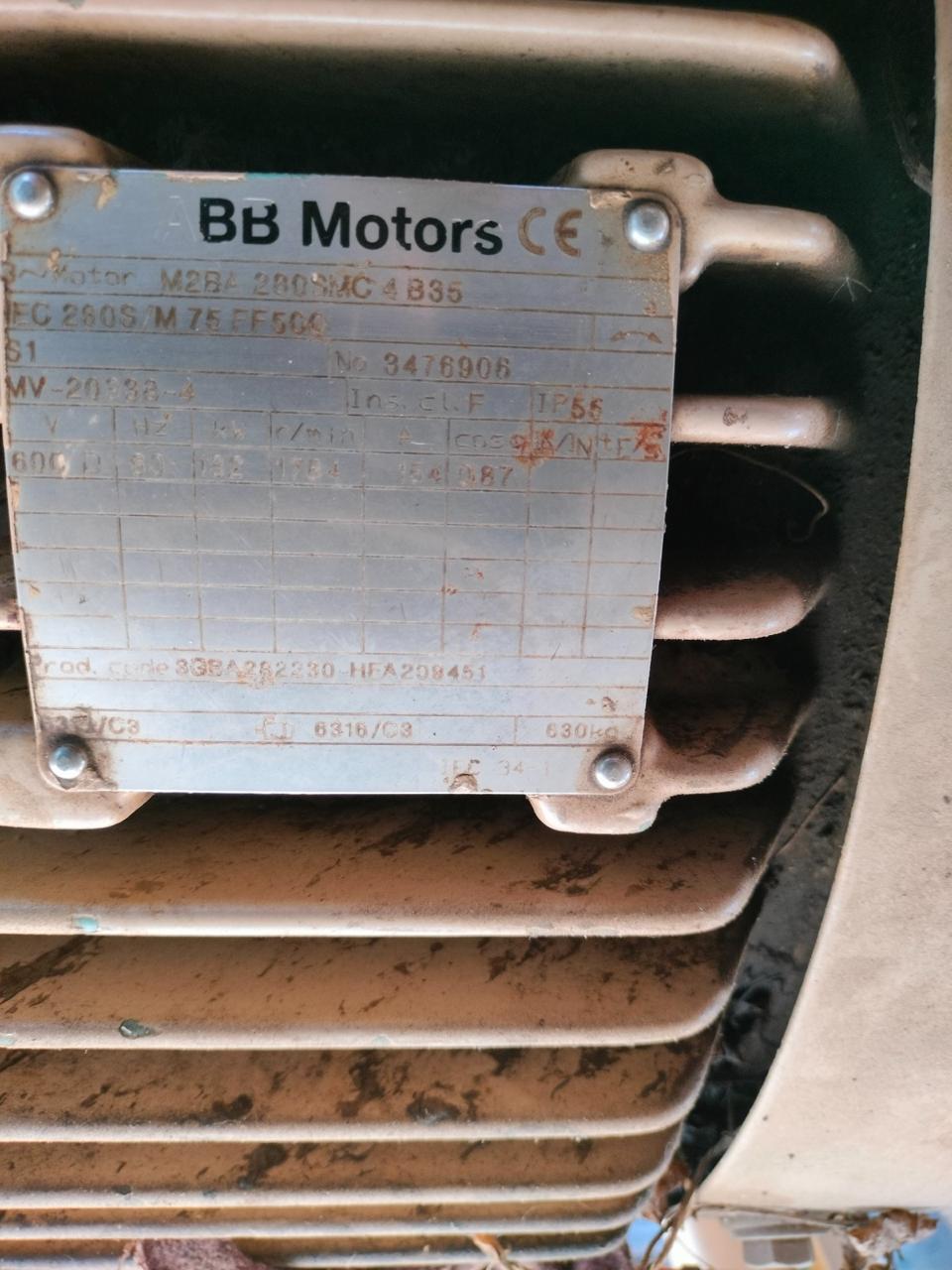

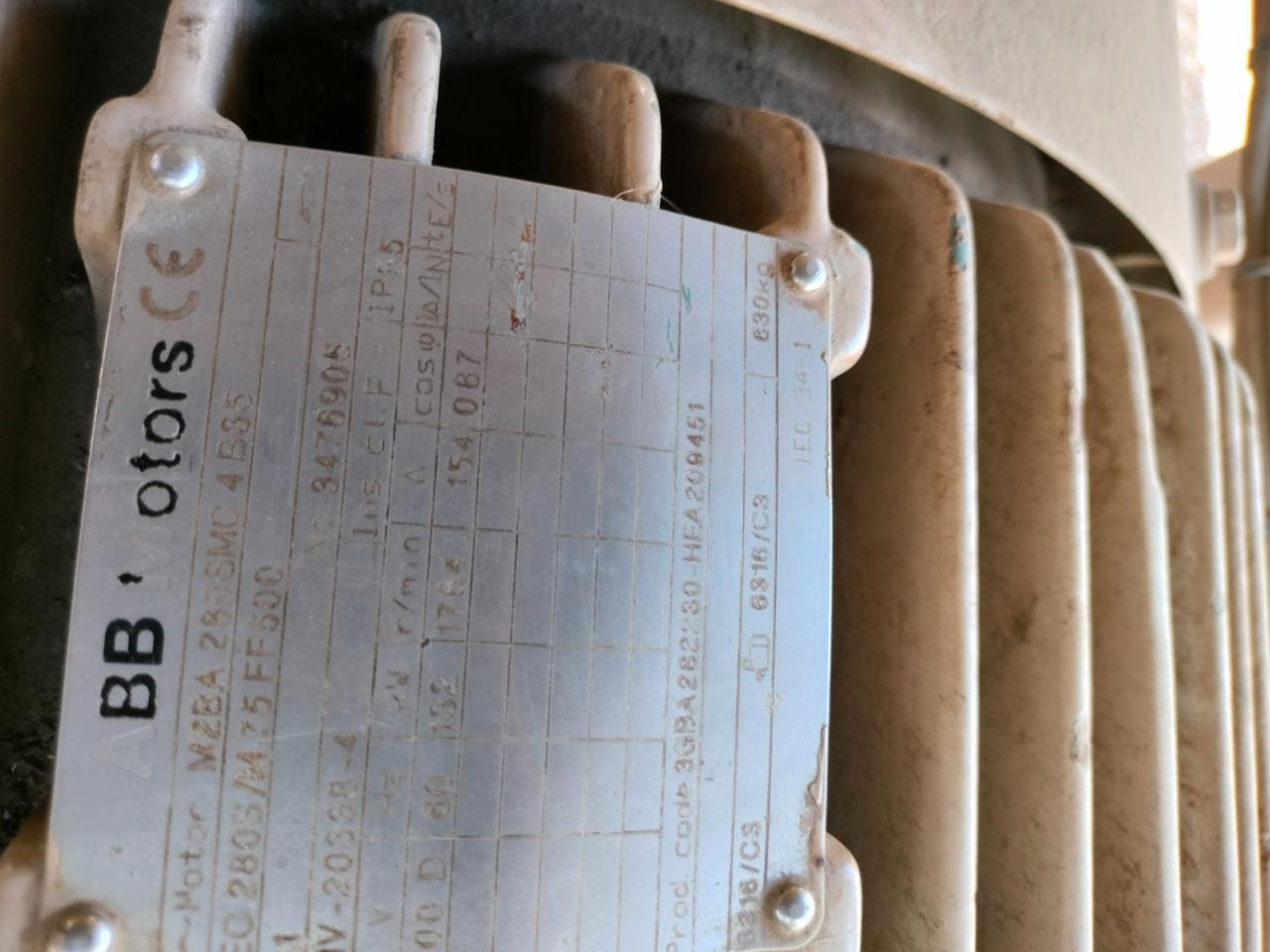

| MOTOR TYPE | M2BA 280SMC 4 B35 |
| MOTOR POWER | 132 kW |
| VOLTAGE | 600 V |
| FREQUENCY | 60 Hz |
| CURRENT | 154 A |

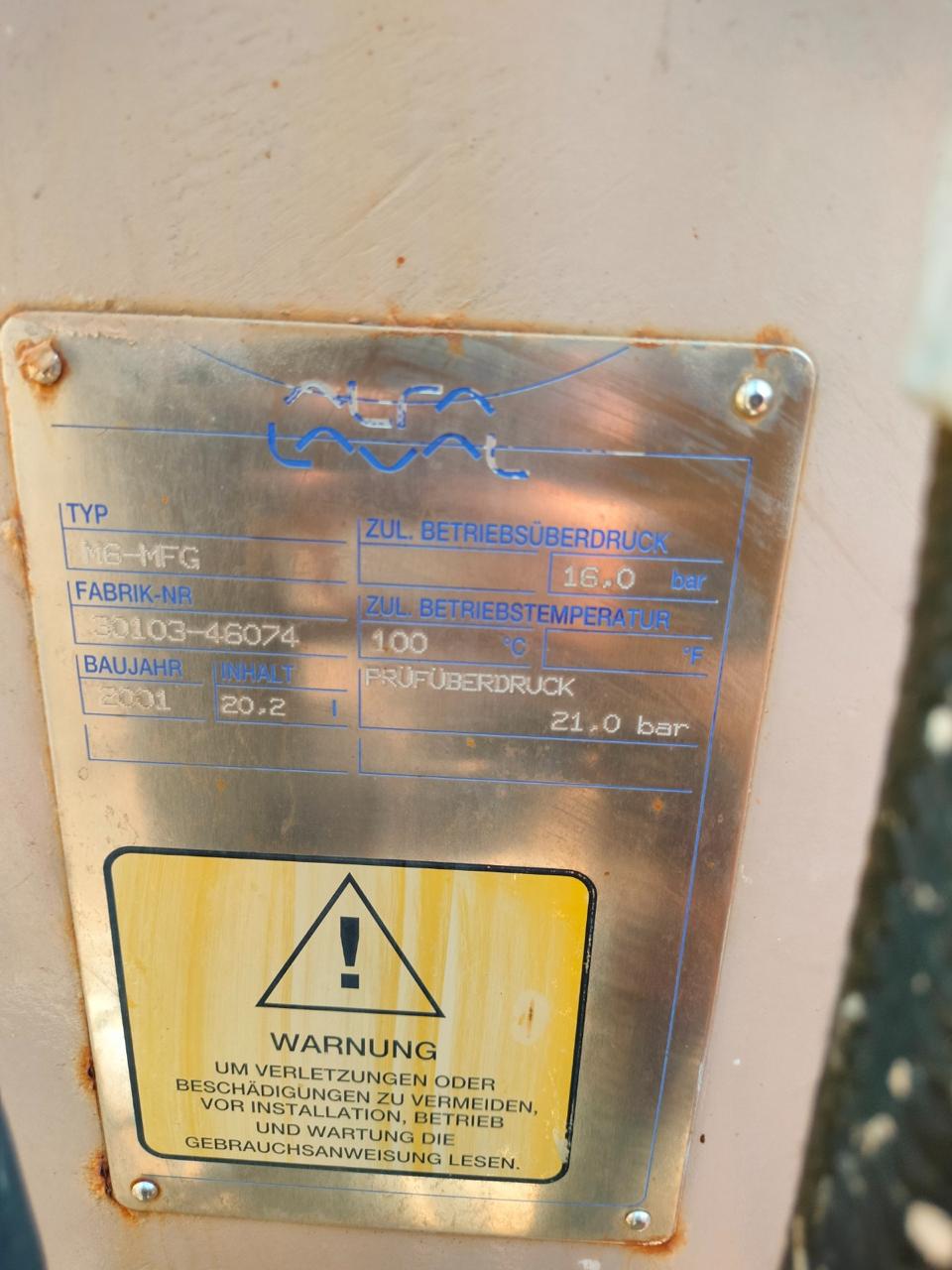

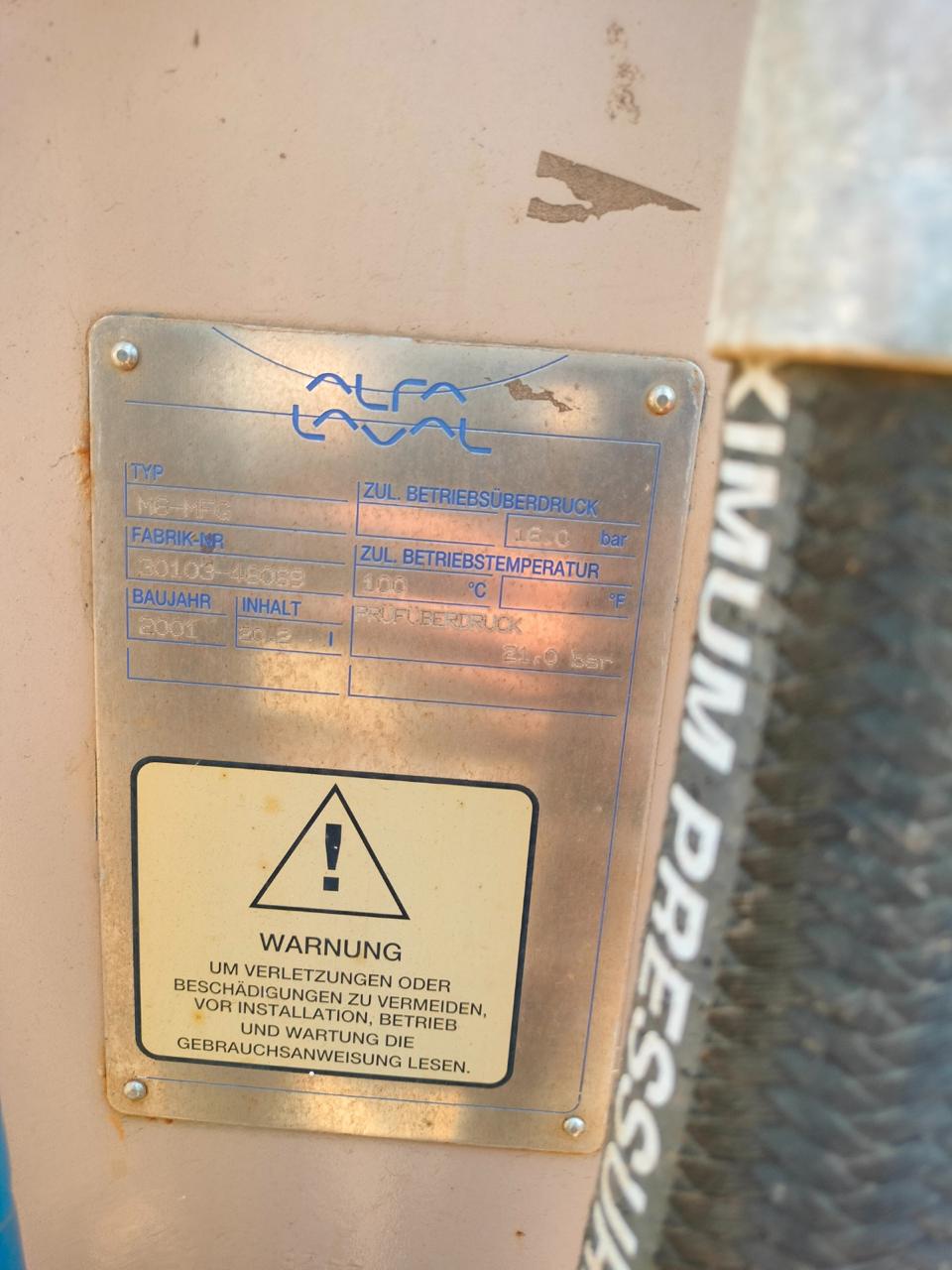

| HEAT EXCHANGER TYPE | M6-MFG |
| ALLOWABLE PRESSURE | 16 BAR |
| ALLOWABLE TEMPERATURE | 100°C |
| TEST PRESSURE | 21 BAR |
