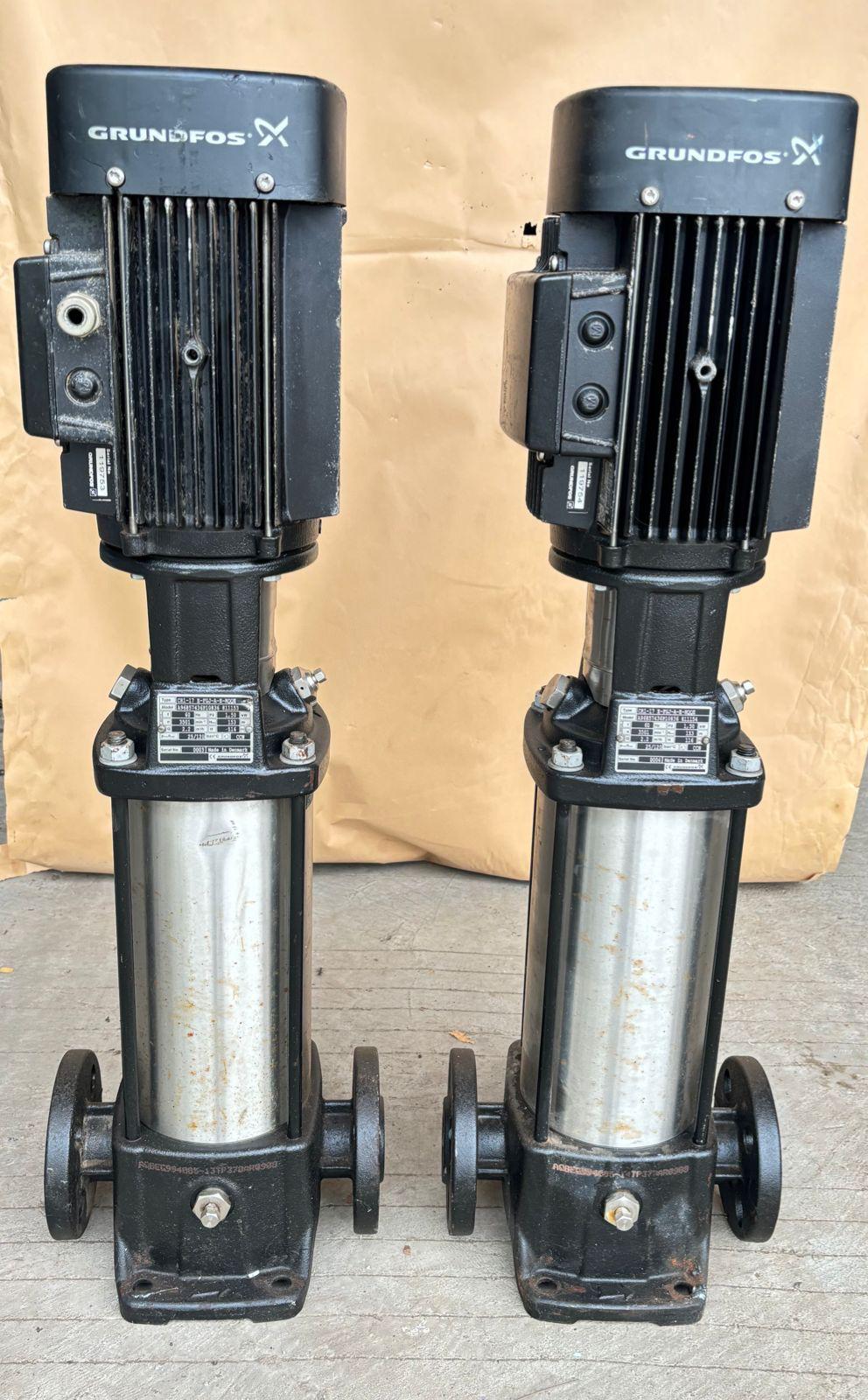

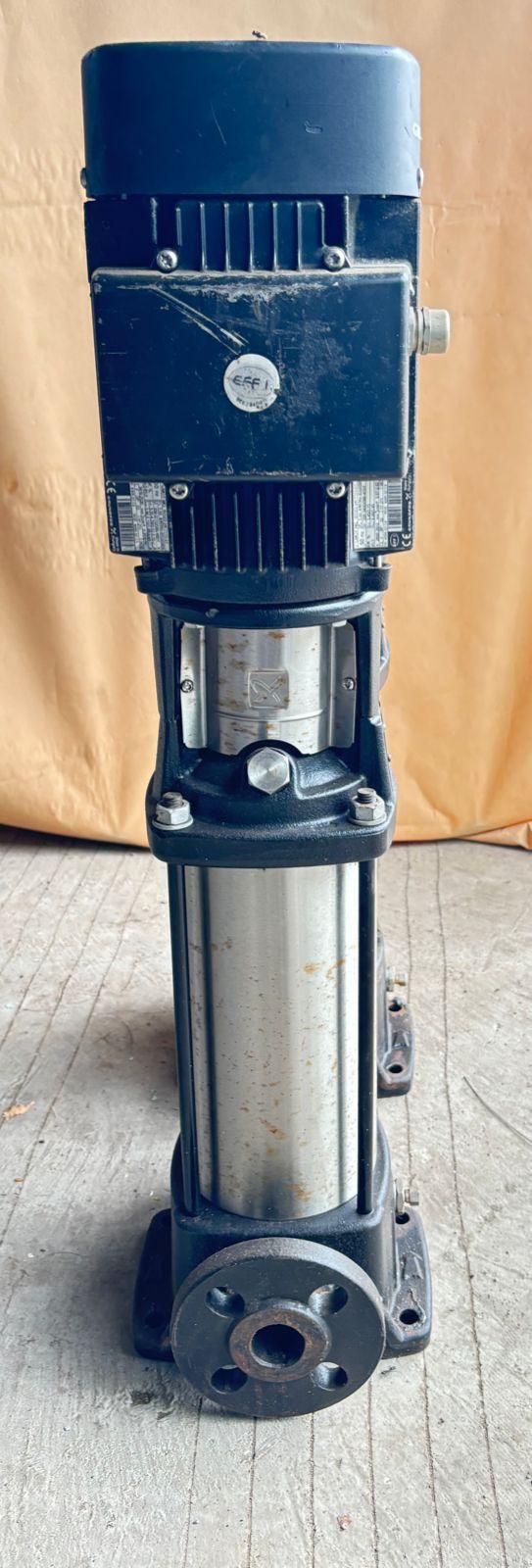

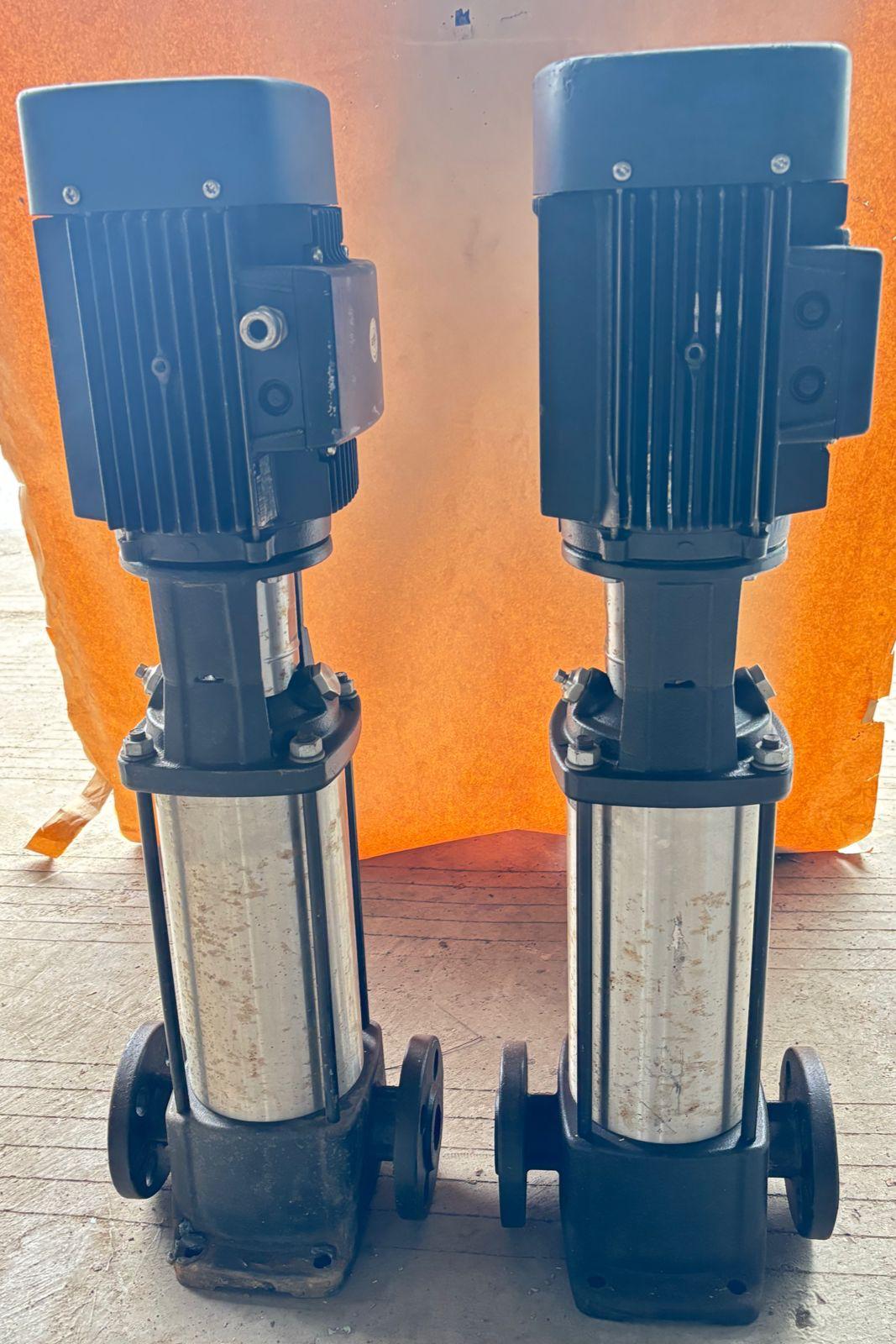

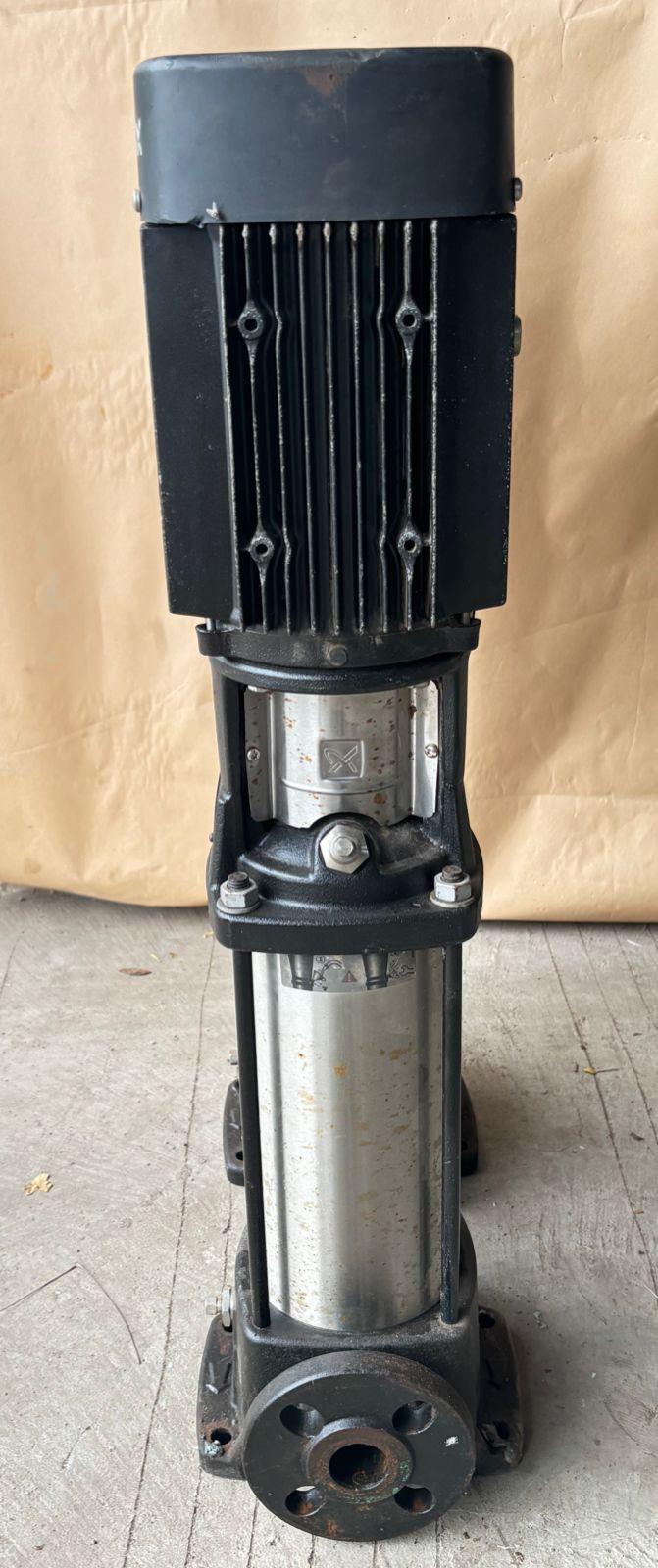

GRUNDFOS – CR1-17 E-FGJ-A-E-HQQE – VERTICAL MULTISTAGE CENTRIFUGAL PUMP
The Grundfos CR1-17 E-FGJ-A-E-HQQE vertical multistage pump is a high-efficiency vertical multistage centrifugal pump engineered for boiler feed, high-pressure boosting, industrial liquid transfer, water treatment systems, and HVAC circulation. Manufactured by Grundfos, this heavy-duty inline multistage centrifugal pump features in-line suction and discharge ports, a cast-iron pump head and base, and corrosion-resistant AISI 304 stainless steel impellers. Key technical specifications include 17 stages delivering rated flow up to 2.2 m³/h, rated head up to 116.4 meters, maximum operating pressure up to 25 bar (PN25), liquid temperature range from -20°C to +120°C, single-cartridge HQQE SiC/SiC/EPDM mechanical shaft seal, combined DIN/ANSI/JIS DN25/32 flanged connections, and direct coupling to a high-efficiency 3-phase IEC electric motor. Utilizing the Grundfos CR 1-17 multistage pump assembly guarantees low lifecycle energy costs, reliable continuous-duty performance, minimal maintenance downtime, and superior hydraulic efficiency in demanding industrial processing networks.
Specification
Overview

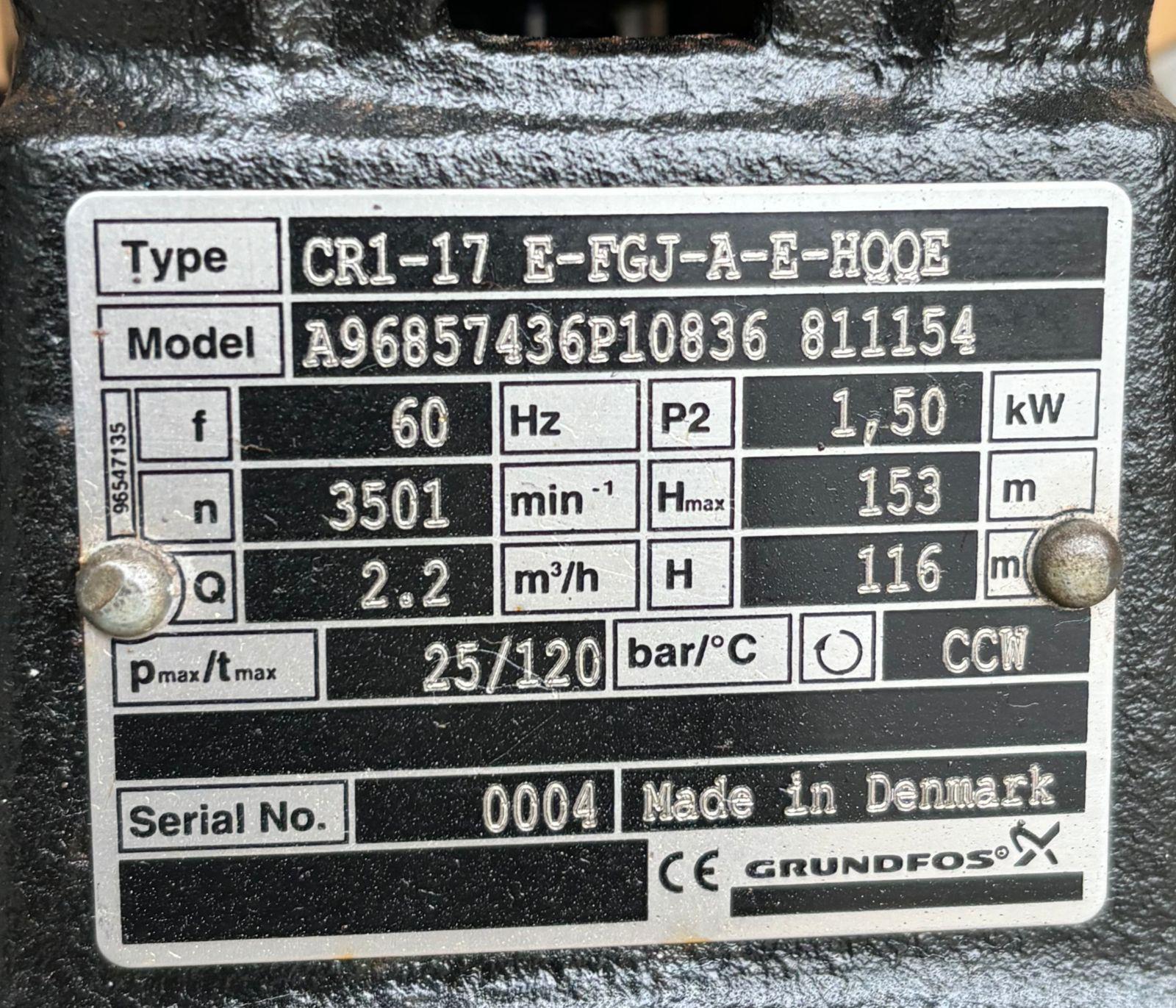

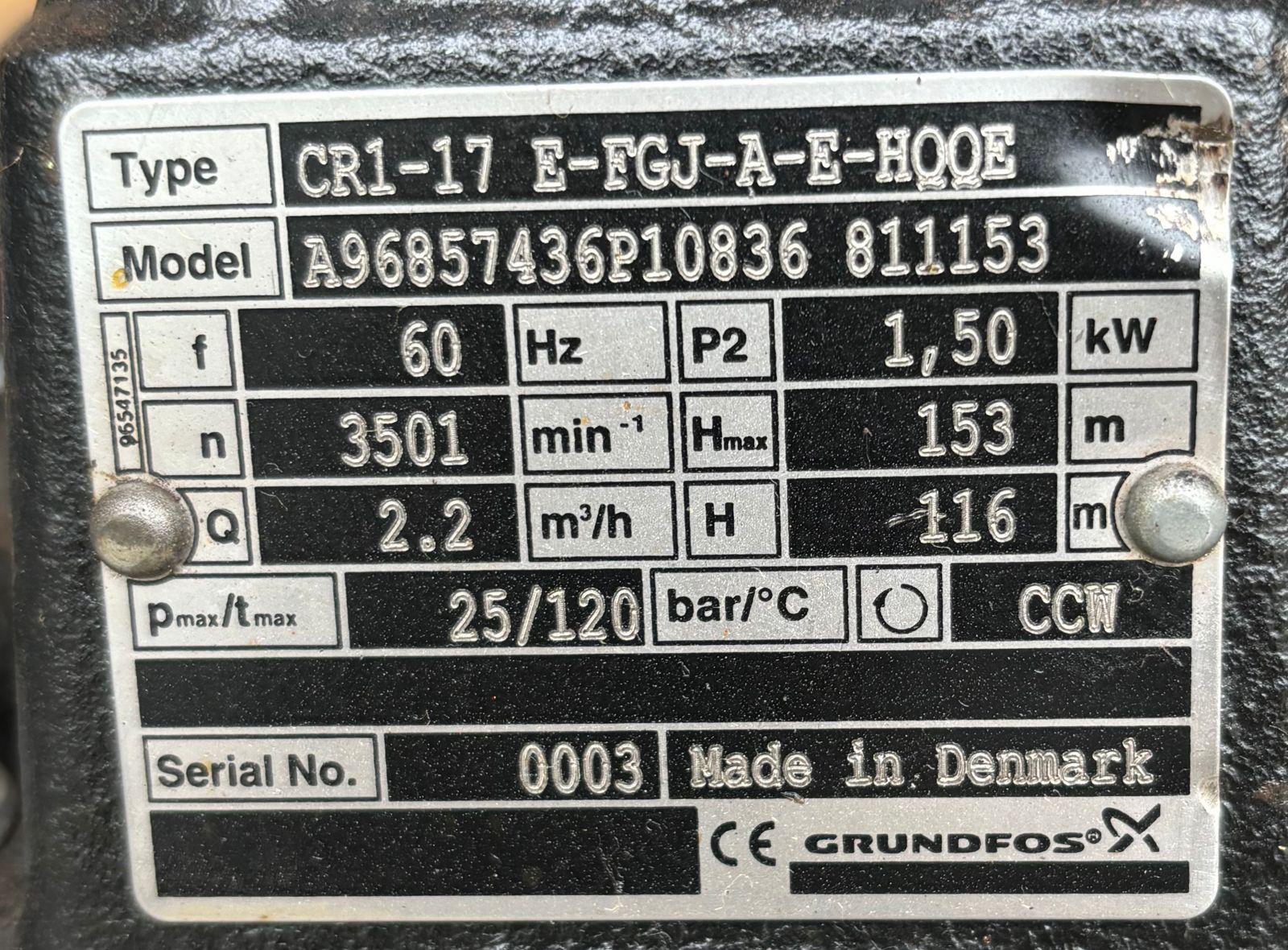

| TYPE | CR1-17 E-FGJ-A-E-HQQE |
|---|---|
| CAPACITY | 2.2 M³/H |
| HEAD | 153 M |
| SPEED | 3501 RPM |
| FREQUENCY | 60 Hz |
| POWER | 1.50 KW |
| PRESSURE | 25 BAR |
| TEMP | 120°C |

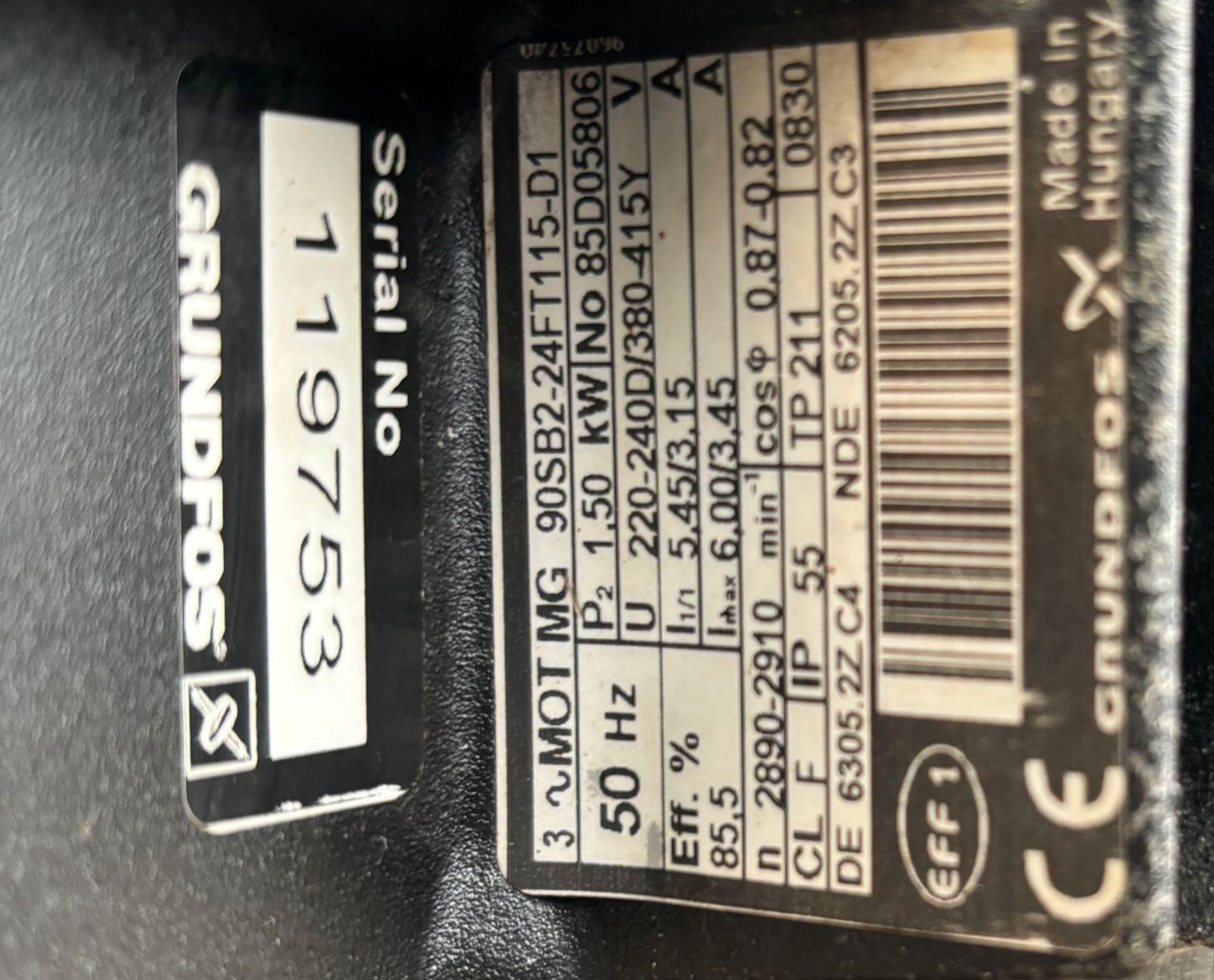

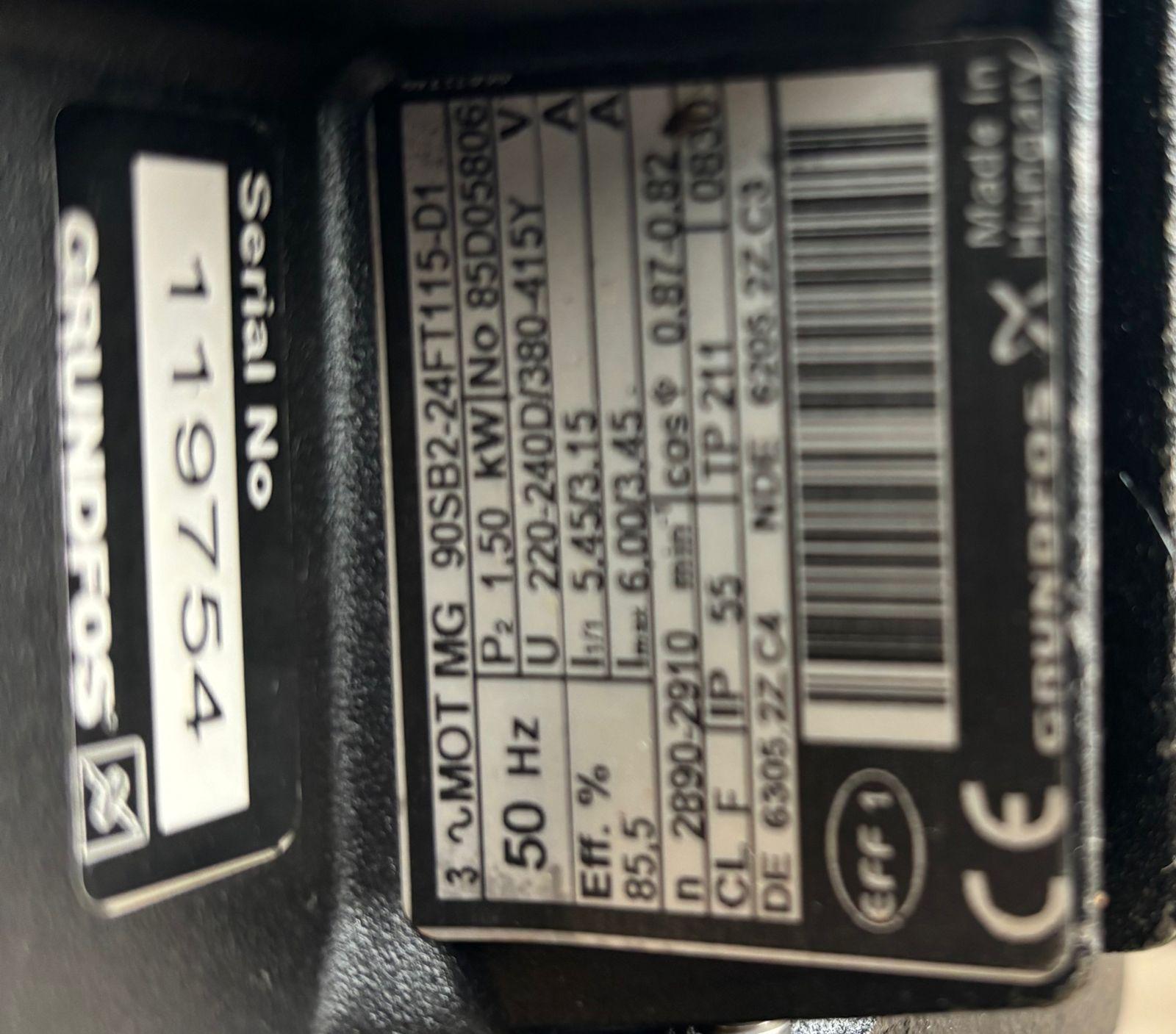

| MOTOR TYPE | MG |
| VOLTAGE | 220-415 V |
