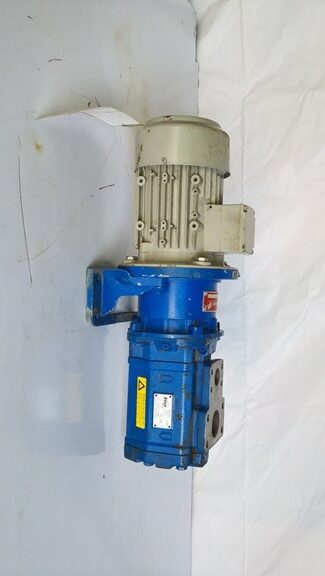

IMO – ACE 032L3 NVBP – TRIPLE SCREW PUMP

The IMO ACE 032L3 NVBP is a high-performance, low-pressure triple screw positive displacement pump designed for the smooth, pulsation-free transfer of lubricating and hydraulic fluids. Engineered for quiet operation and long-term reliability in marine and industrial applications, it is commonly utilized for fuel oil handling, lubrication, and circulation systems. Technical specifications include a flexible flow rate ranging between 10 to 96 l/min (approximately 6 to 17 GPM depending on motor speeds from 1410 to 3550 RPM). It features a maximum differential pressure capacity of 16 bar (up to 230 PSI), a 1-inch port size, durable cast iron construction, and a standard mechanical V-seal optimized for light-duty operation.
