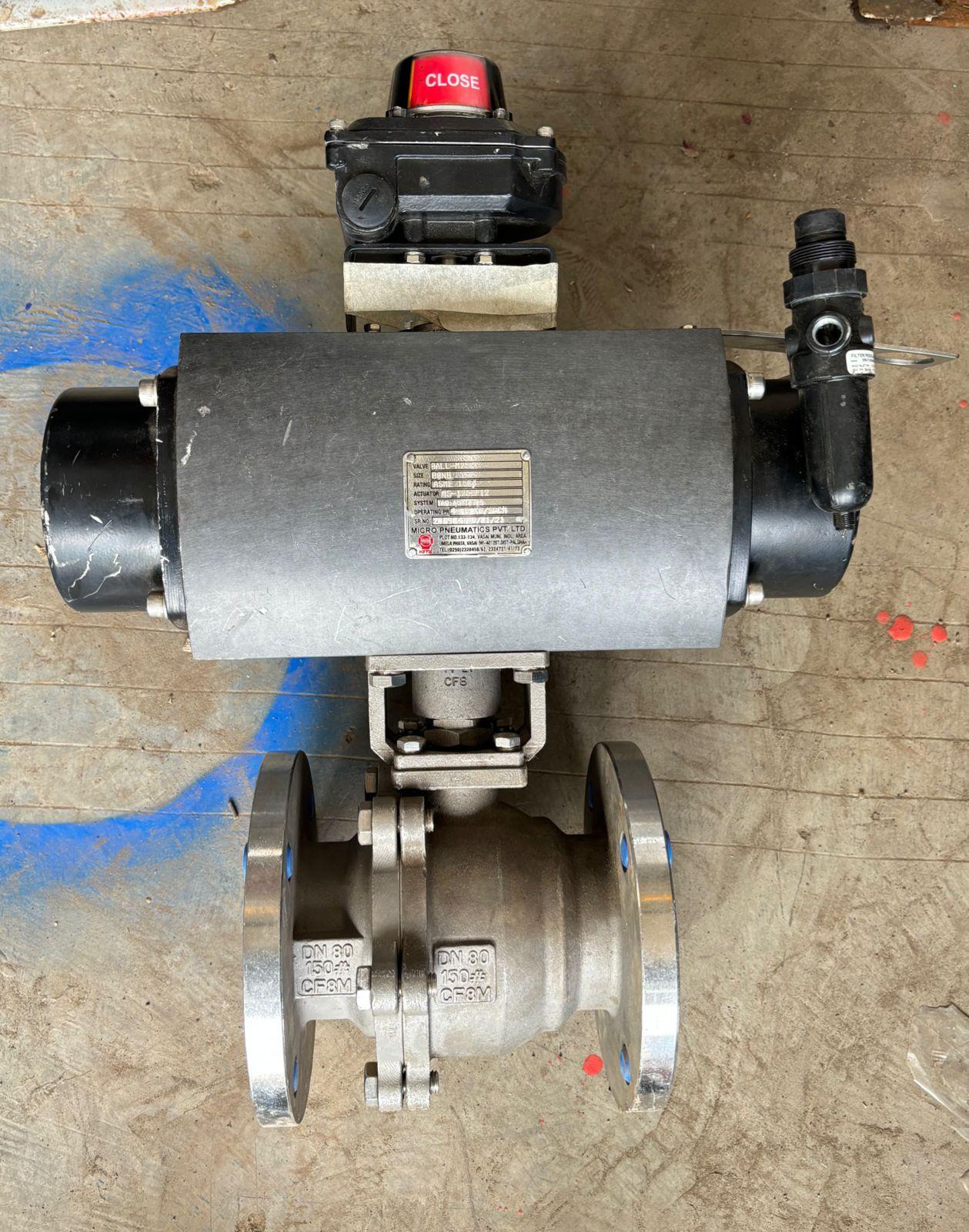

MICRO PNEUMATICS – M2F – 3″ INCH – AUTOMATED BALL VALVE
The Micro Pneumatics M2F (FS) 3-inch automated ball valve is a high-performance pneumatically actuated fire-safe ball valve engineered for tight shut-off, rapid automated actuation, and safe fluid isolation in chemical, oil and gas, pharmaceutical, and industrial processing pipelines. Manufactured by Micro Pneumatics, this heavy-duty automated industrial ball valve pairs a precision-machined 3-piece flanged valve body with a reliable pneumatic rotary actuator. Key technical specifications include a 3-inch (DN80) nominal port size, fire-safe design certified to API 607 / BS 6755 standards, blow-out proof stem construction, ISO 5211 direct mounting pad interface, high-grade SS316 (CF8M) or WCB body material options, ASME Class 150/300 pressure ratings, dynamic live-loaded PTFE/RPTFE stem packing, and flanged end connections to ASME B16.5. Integrating the Micro Pneumatics M2F FS automated valve assembly guarantees exceptional pressure containment, zero leakage, low operational torque, and continuous-duty reliability in critical process safety environments.
Specification
Overview
| TYPE | BALL – M2S (F/S) |
|---|---|
| VALVE SIZE | 3″ INCH, 80NB |
| PRESSURE | ASME 150 |
| OPERATING AIR PRESSURE | 4 TO 8 KG/CM² |
| ACTUATOR MODEL | MS-125-F12 |
