NORDIC – WAFER / S57 – ACTUATOR – AS25 – BUTTERFLY VALVE
The Nordic S57 wafer butterfly valve with AS25 actuator is a high-performance automated flow control valve unit engineered for seamless fluid isolation and throttling in demanding marine and industrial environments. Featuring a compact, space-saving wafer design paired with a reliable AS25 actuator, this assembly offers rapid, low-friction automated operation for maximum process efficiency. It is widely used in marine ballast systems, cooling water networks, HVAC, and chemical processing pipelines. Renowned for its exceptional corrosion resistance and specialized resilient seal design that guarantees zero-leakage tight shutoff, the Nordic S57 AS25 actuated butterfly valve ensures continuous-duty reliability, low maintenance, and long service life.
Specification
Overview

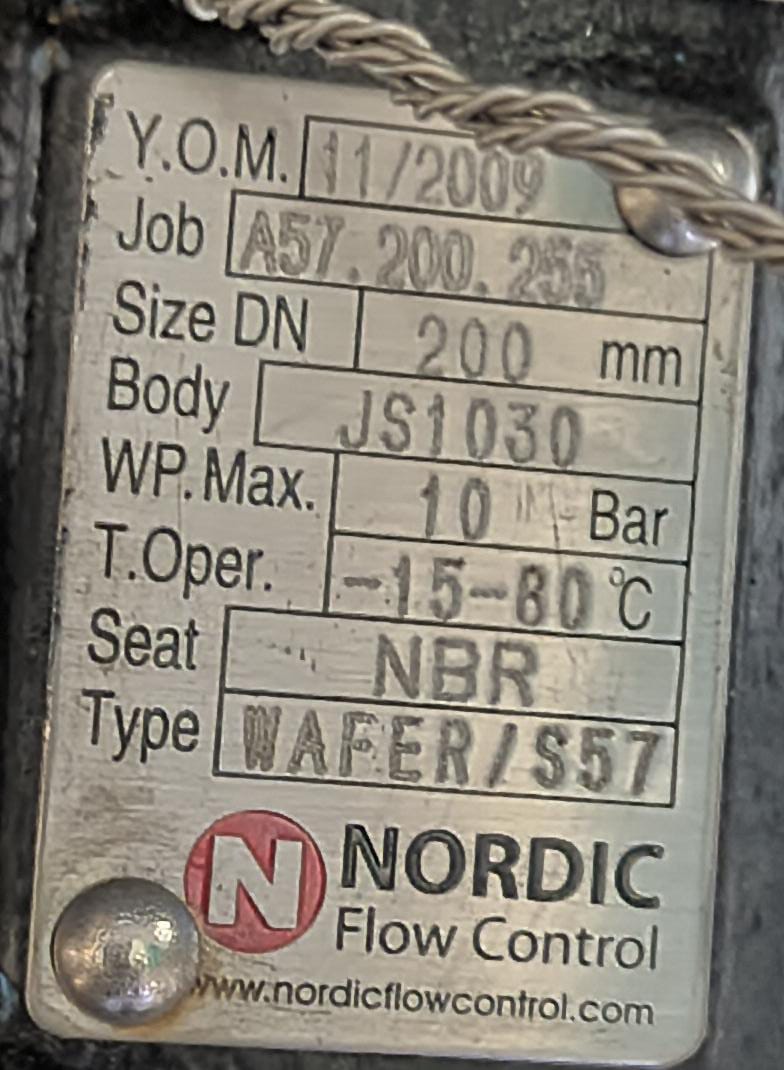

| TYPE | WAFER / S57 |
|---|---|
| PRESSURE | 10 BAR |
| SIZE | 200 MM (8 INCH) |
| TEMPERATURE | -15 °C TO +80 °C |

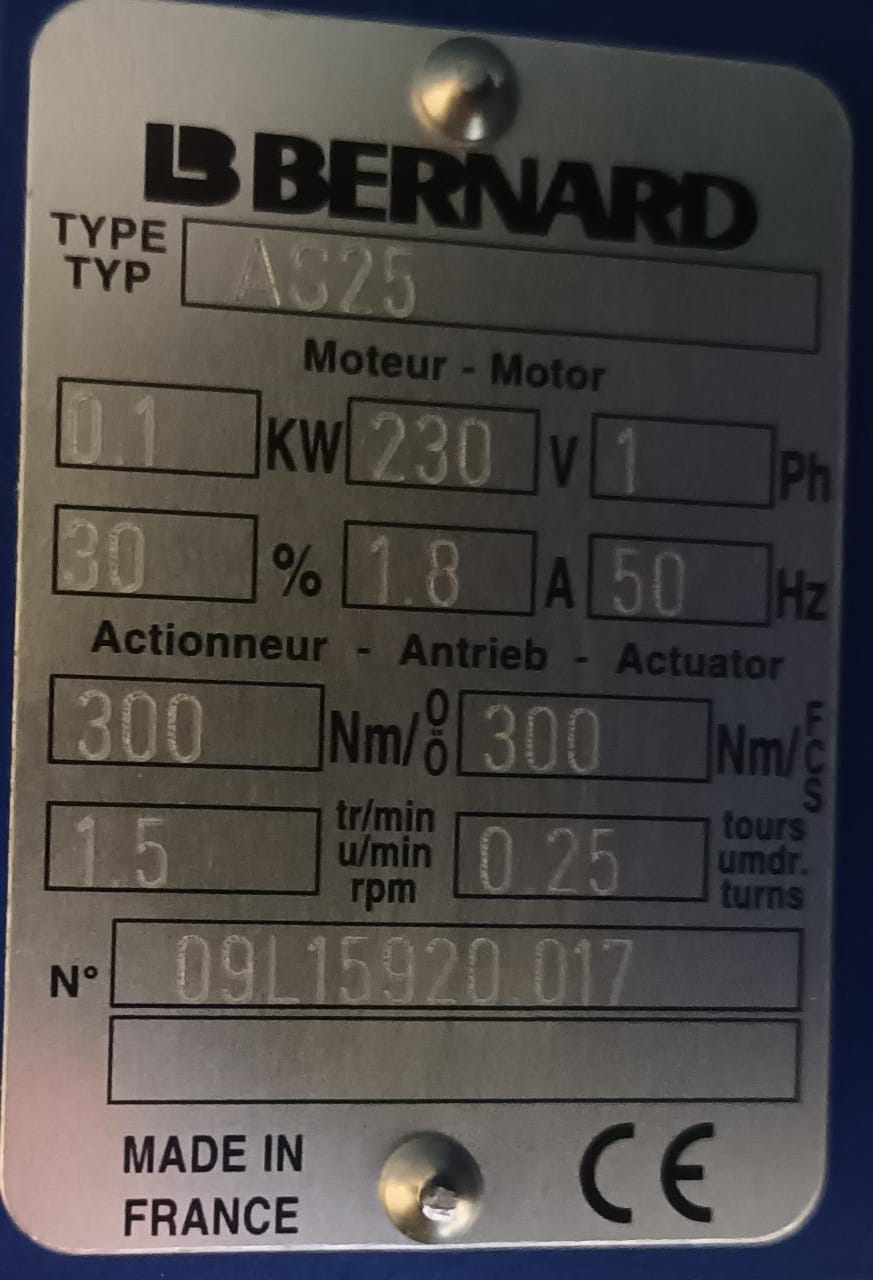

| ACTUATOR TYPE | AS25 |
| POWER | 0.1 KW |
| VOLTAGE | 230 V |
| PHASE | SINGLE PHASE 1 PH |
| FREQUENCY | 50 Hz |
| CURRENT | 1.8 A |
| SPEED | 1.5 RPM |
