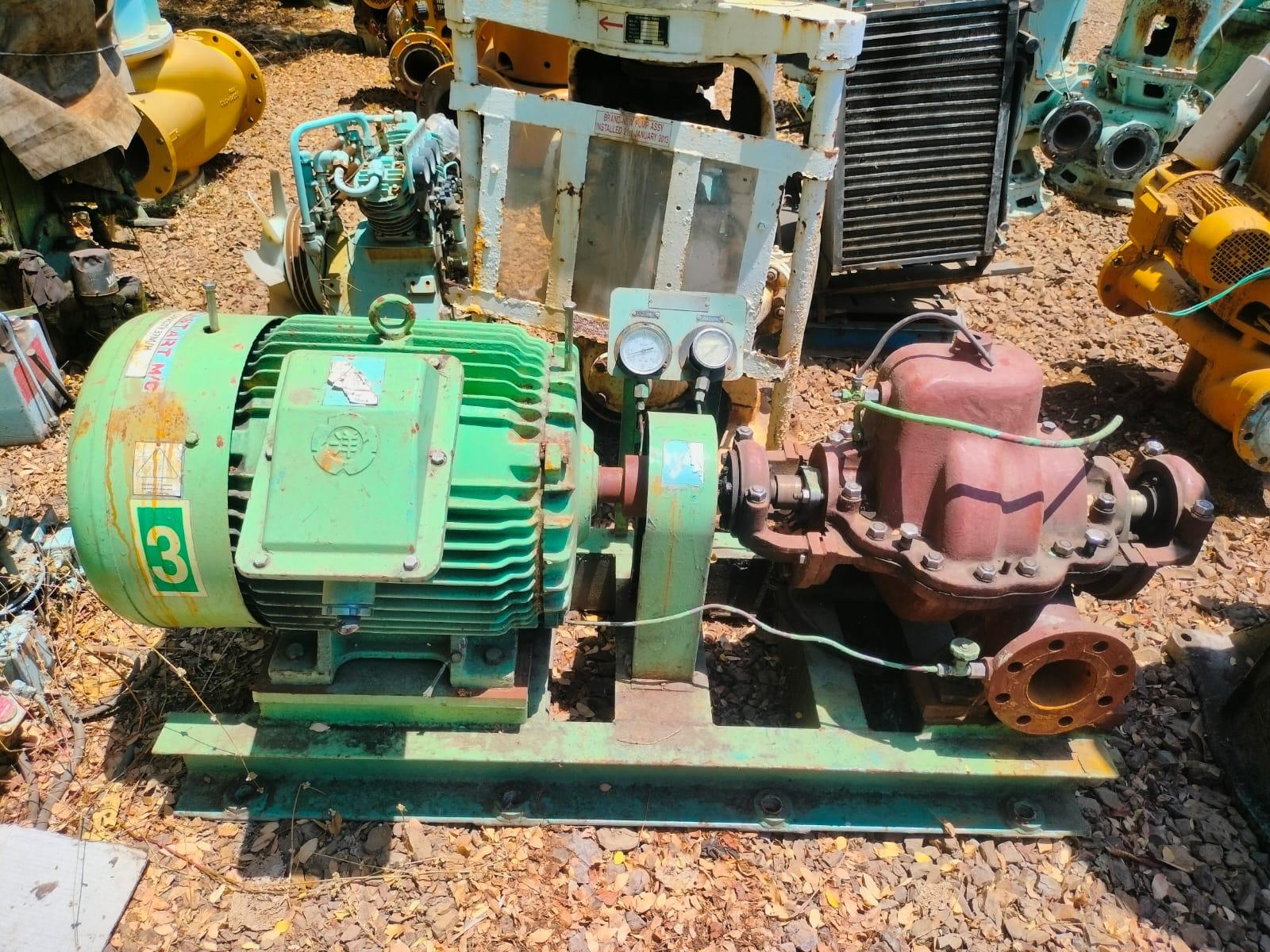

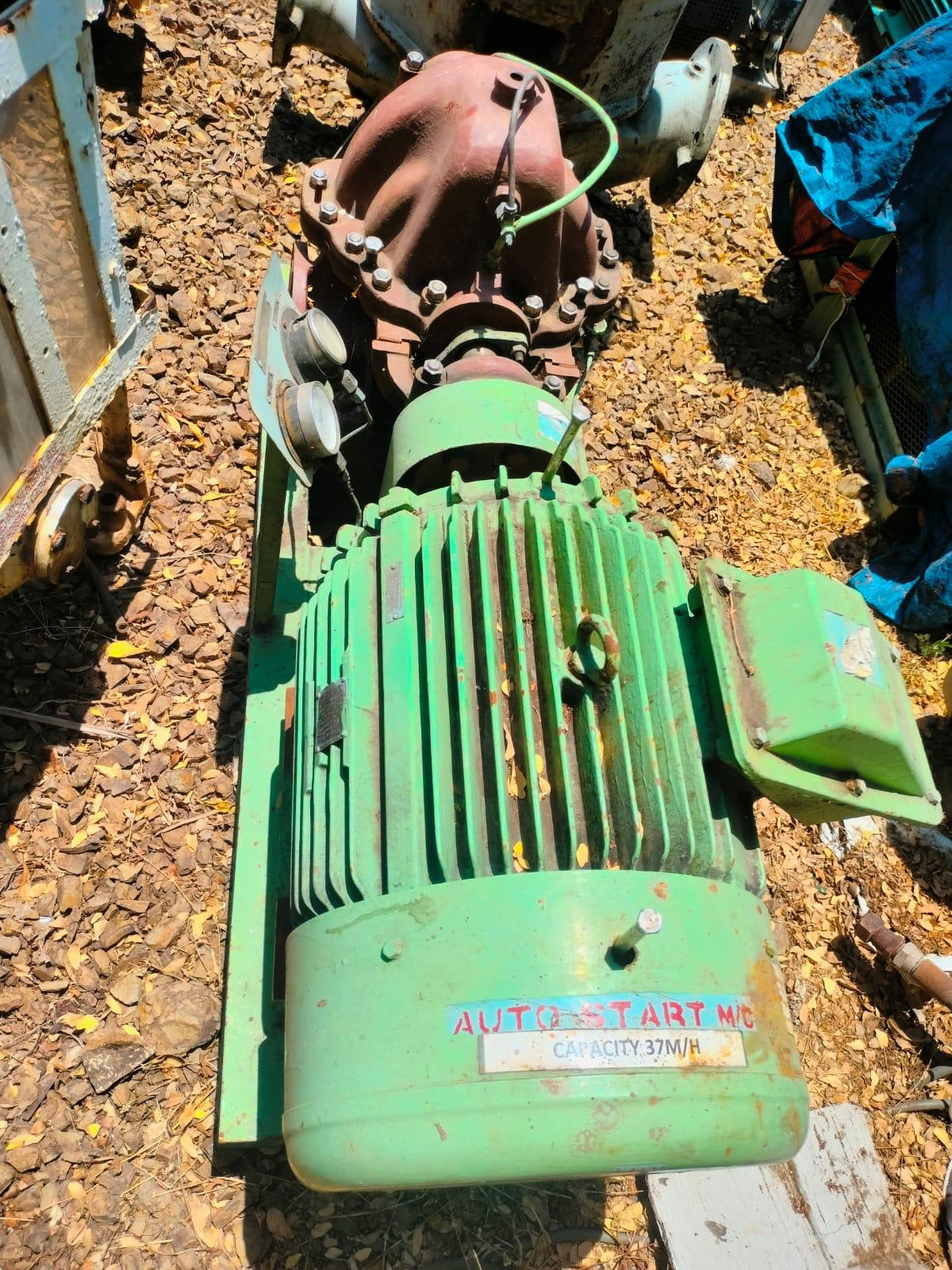

SHINKO – GHQ100-2M – CENTRIFUGAL PUMP
The Shinko GHQ100-2M Marine Pump is a high-performance industrial centrifugal pump designed for demanding marine and heavy-duty fluid transfer applications. Engineered by Shinko Co., Ltd., this robust pump delivers an impressive flow capacity of 86 m³/h with a high total head pressure of 232 m. Powered by a reliable 55 kW Taiyo Electric 3-phase induction motor (Type TIT225S) running at 440V, 60Hz, and 3530 RPM, this unit guarantees high-pressure output and continuous operating efficiency. Featuring a sturdy 300 kg pump body coupled to a 365 kg motor, the Shinko GHQ100-2M is an exceptional choice for marine engine room operations, ballast transfer, and industrial high-head liquid management.
Specification
Overview

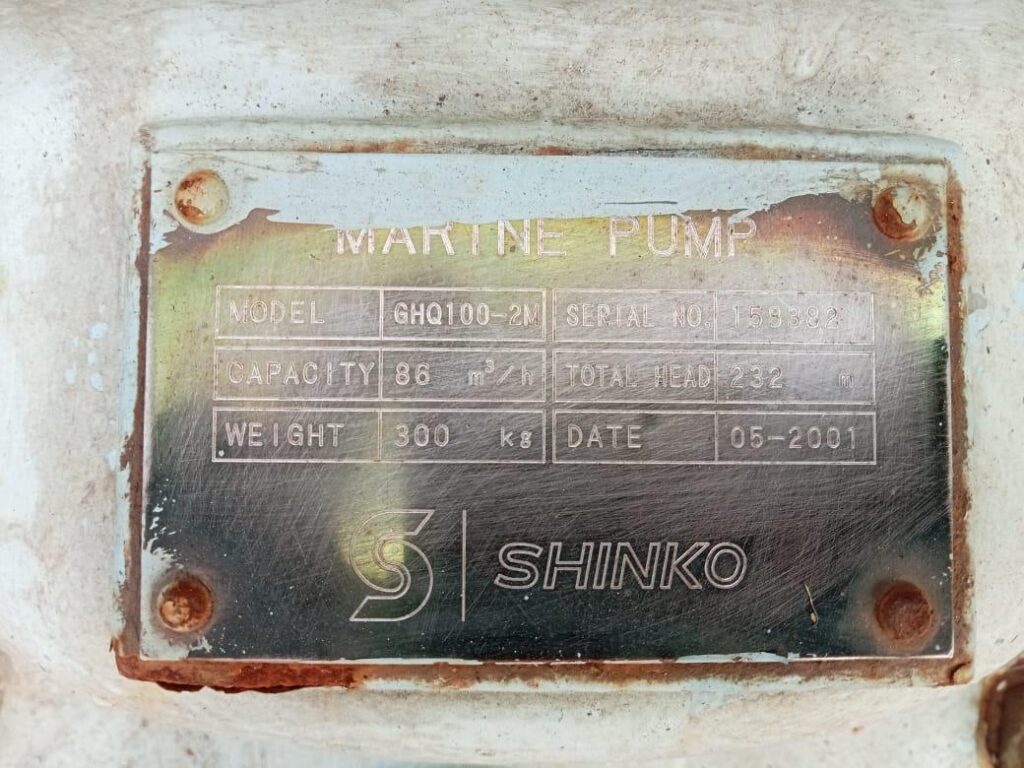

| TYPE | GHQ100-2M |
|---|---|
| CAPACITY | 86 m³/h |
| TOTAL HEAD | 232 m |

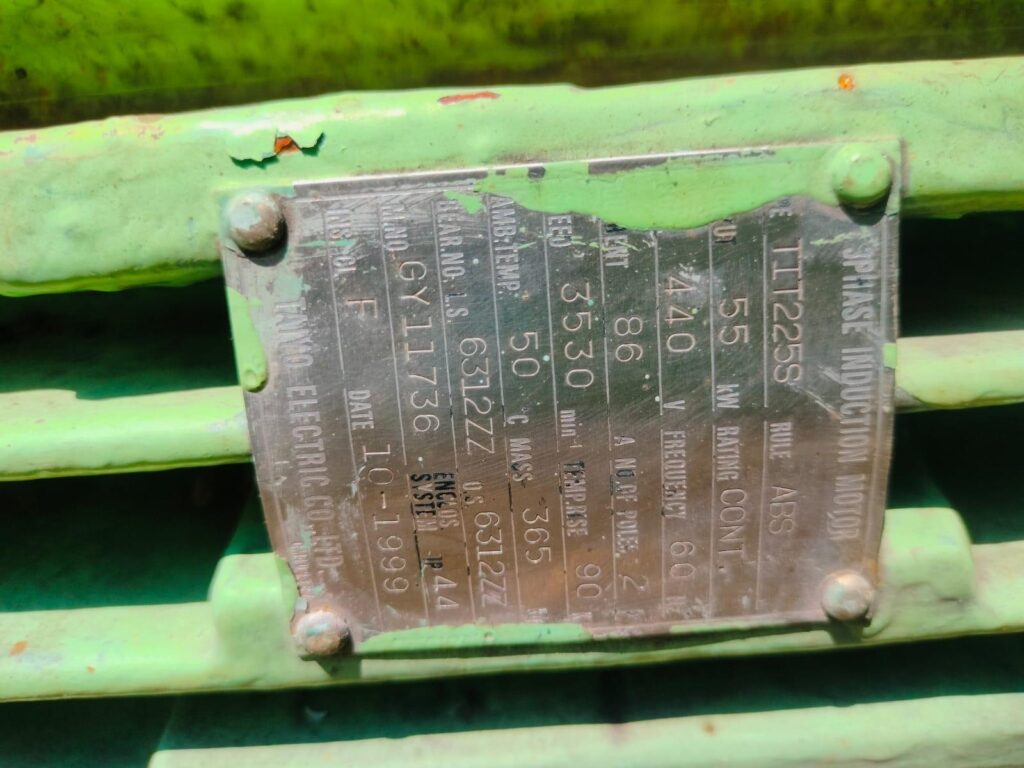

| MOTOR TYPE | TTT225S |
| POWER | 55 kW |
| VOLTAGE | 440 V |
| FREQUENCY | 60 Hz |
| CURRENT | 86 A |
