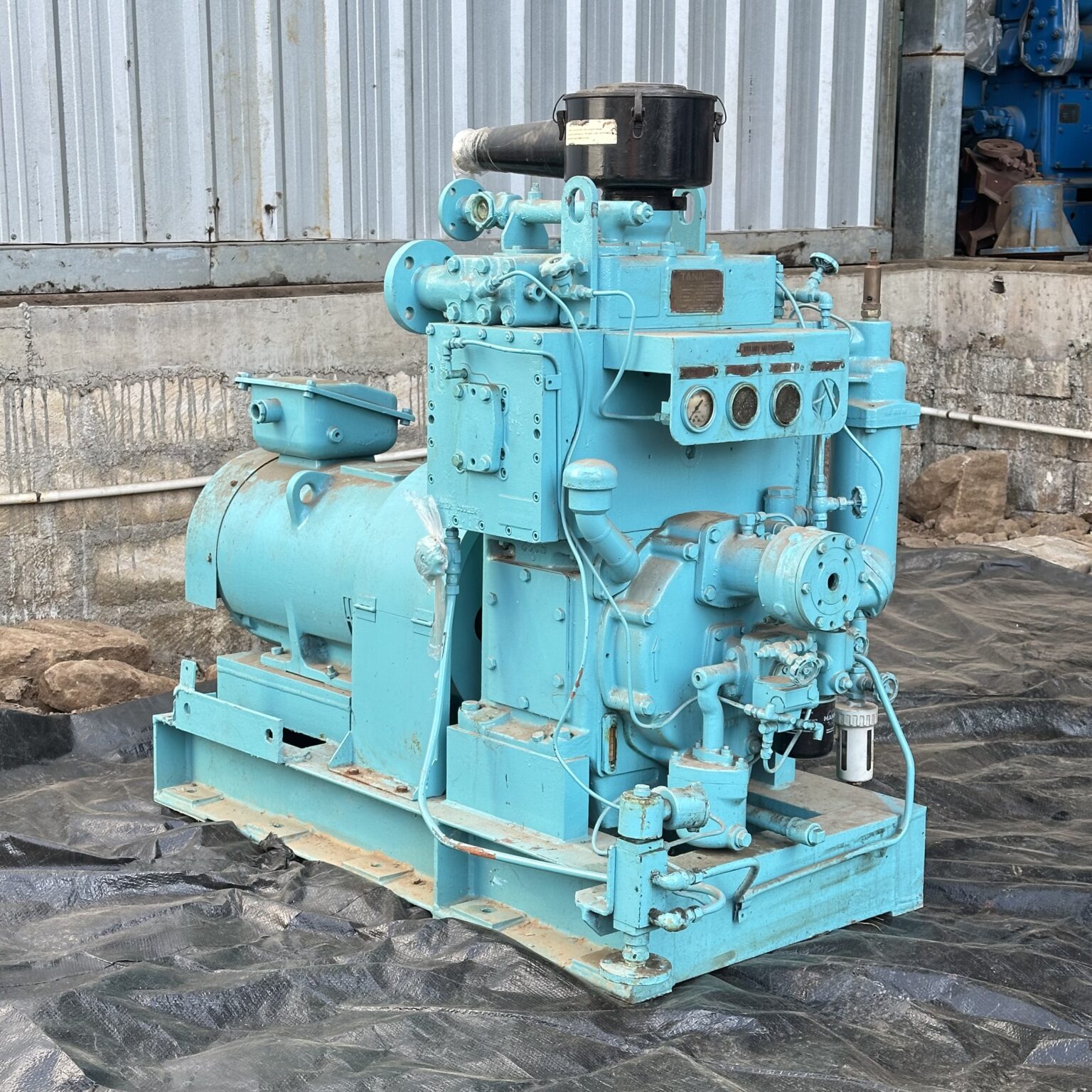

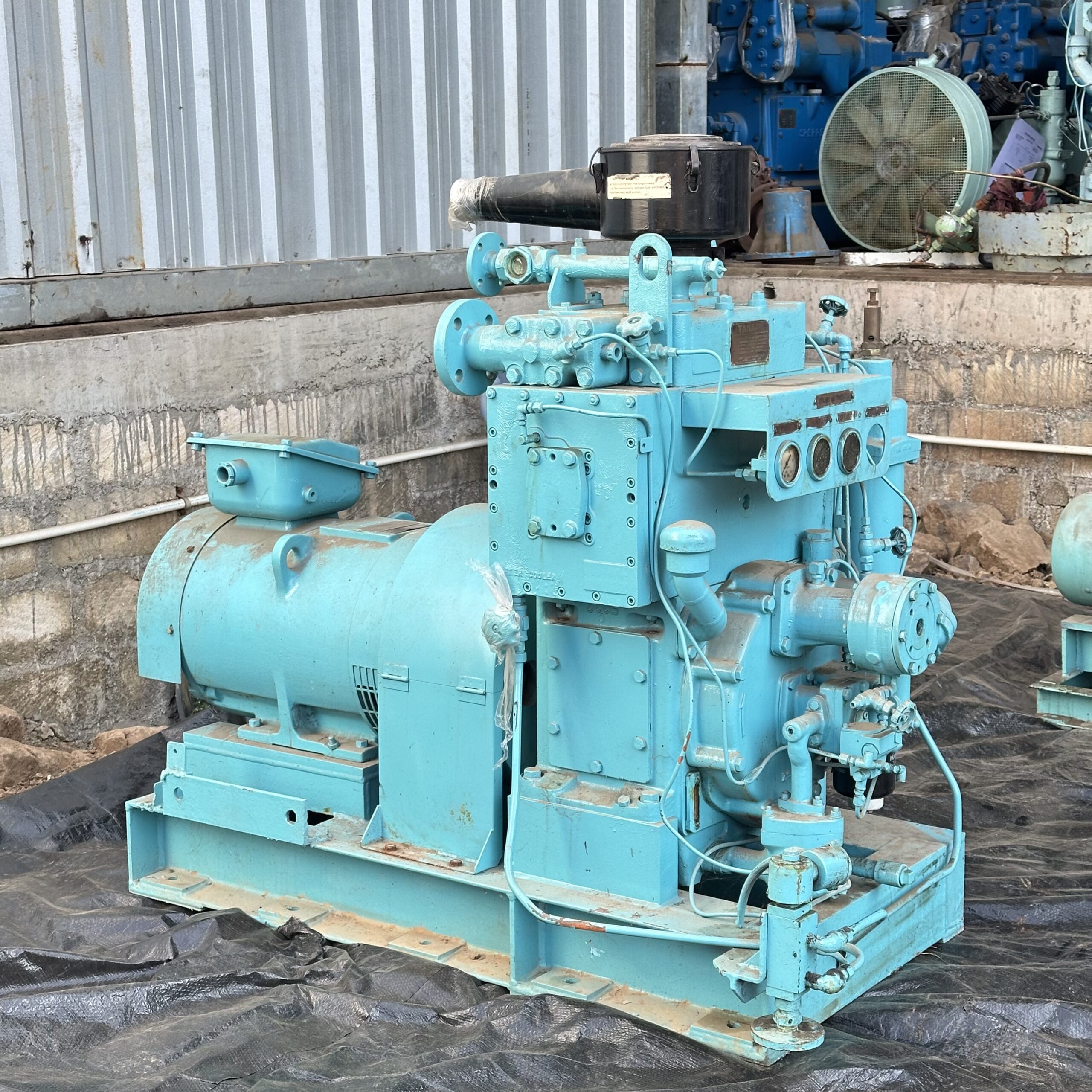

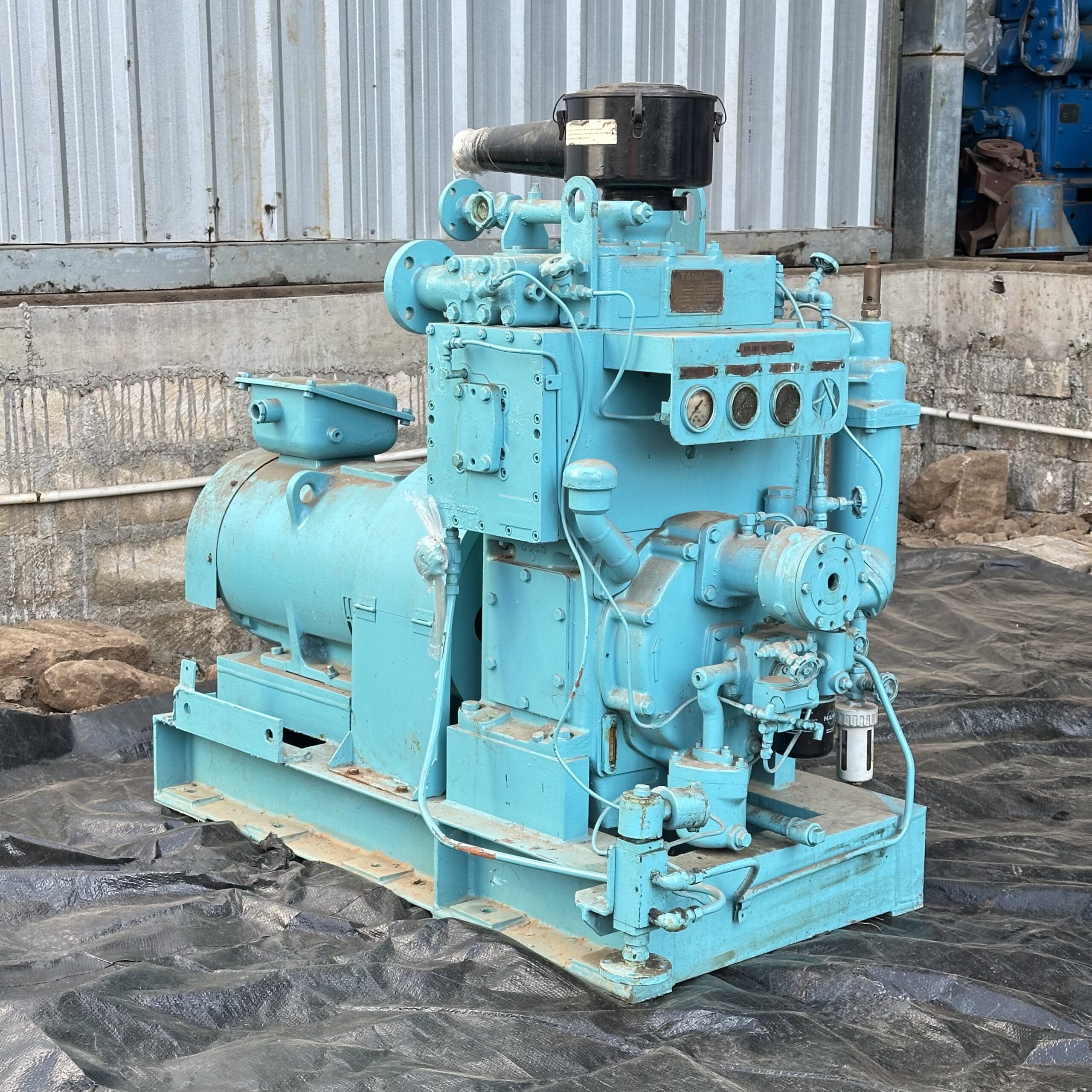

TANABE – H-63 – MARINE AIR COMPRESSOR
The Tanabe H-63 is a high-performance, vertical two-stage water-cooled marine air compressor, engineered for maximum reliability in the most demanding maritime environments. As a trusted model from Tanabe Pneumatic Machinery, the H-63 is specifically designed for main engine starting air and auxiliary shipboard services. Its robust water-cooling system ensures exceptional heat dissipation, maintaining operational stability in high-ambient-temperature engine rooms. Known for its mechanical longevity and low-vibration design, the H-63 provides shipowners with a dependable, low-maintenance solution that guarantees a consistent high-pressure air supply for critical shipboard pneumatic systems and international commercial shipping operations.
Specification
Overview

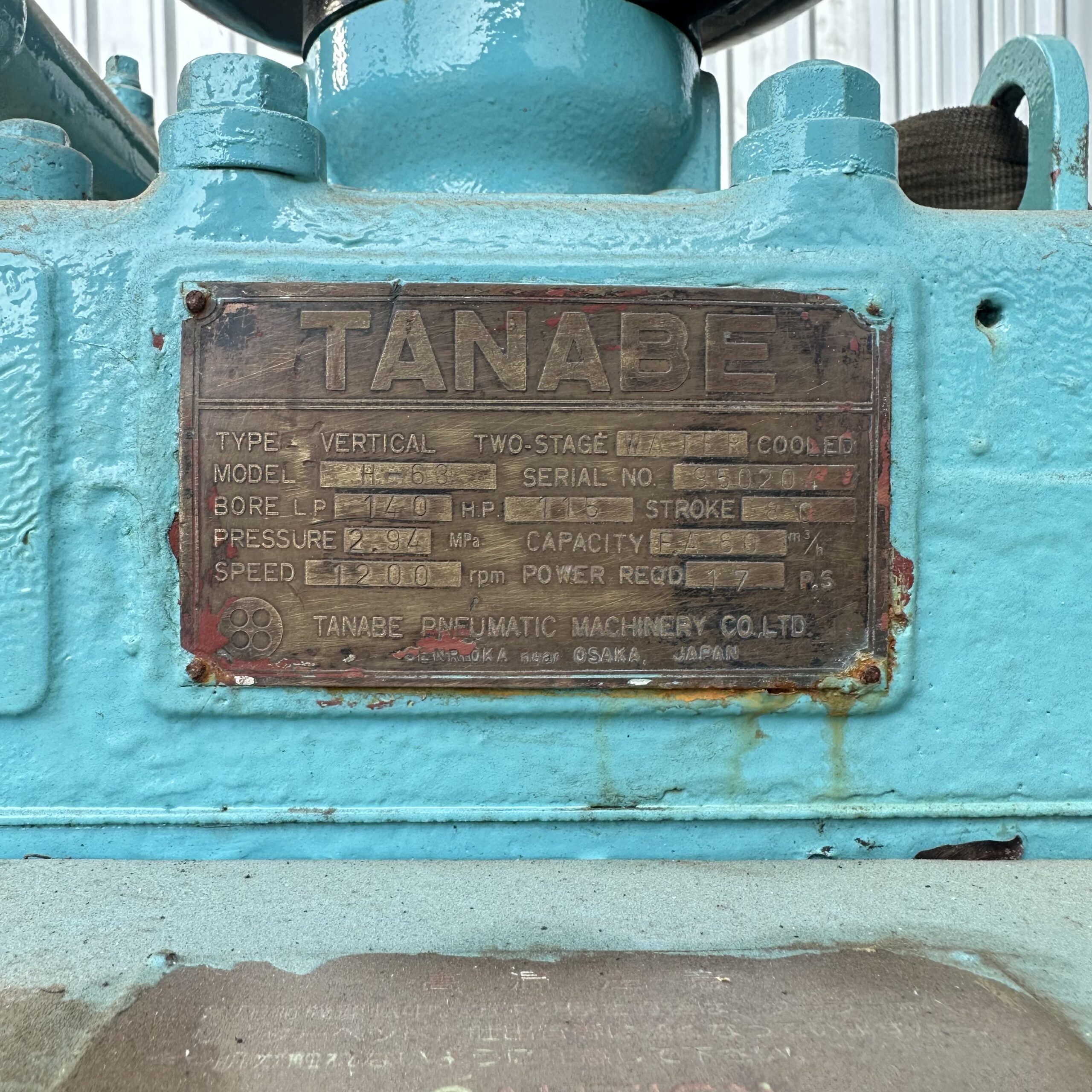

| TYPE | VERTICAL TWO STAGE WATER COOLED |
|---|---|
| MODEL | H-63 |
| BORE L.P | 140 |
| BORE H.P | 115 |
| STROKE | 80 |
| PRESSURE | 2.94 MPa |
| CAPACITY | F.A 60 m³/h |
| SPEED | 1200 RPM |
| POWER REQUIRED | 17 P.S |
