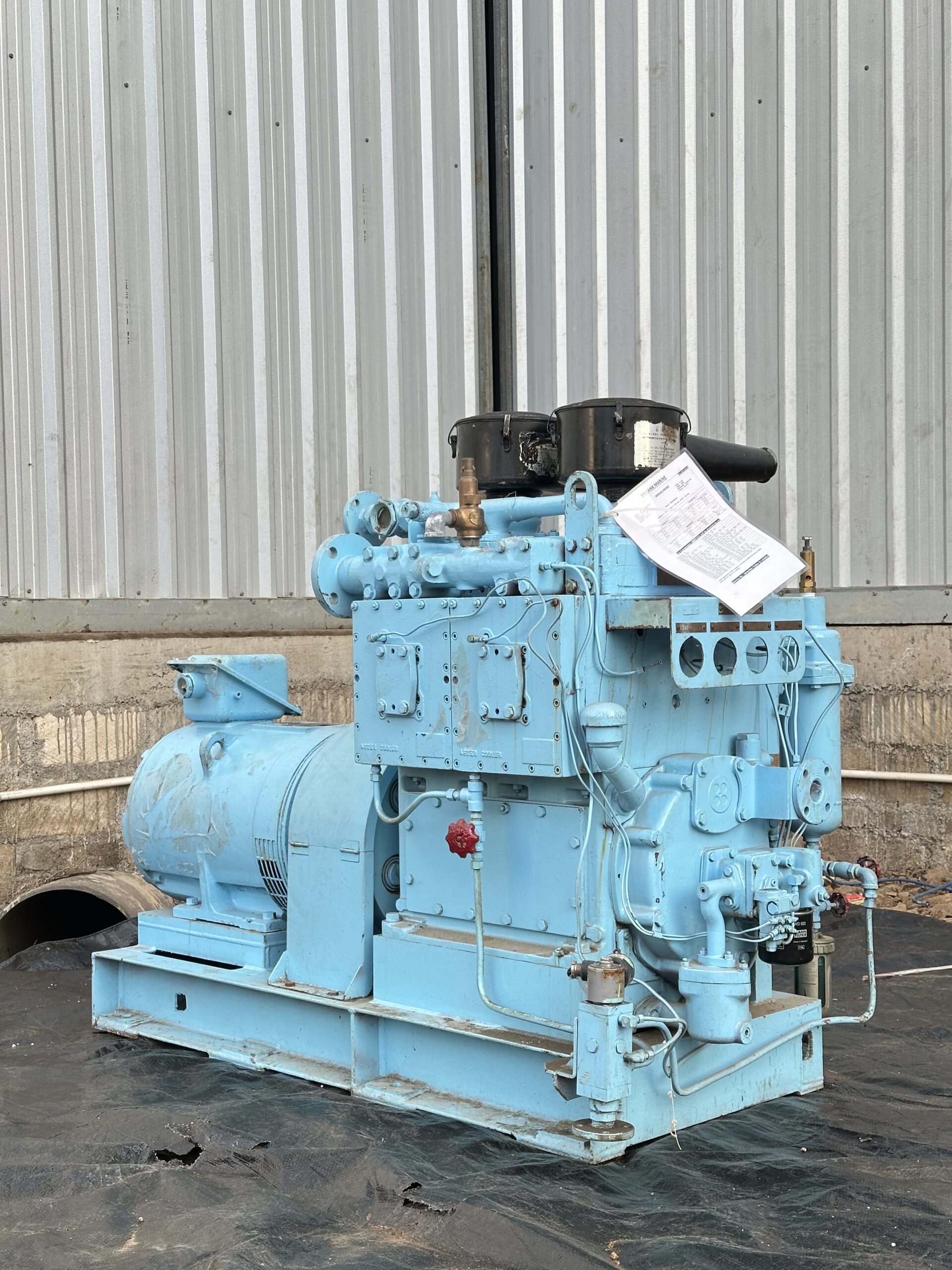

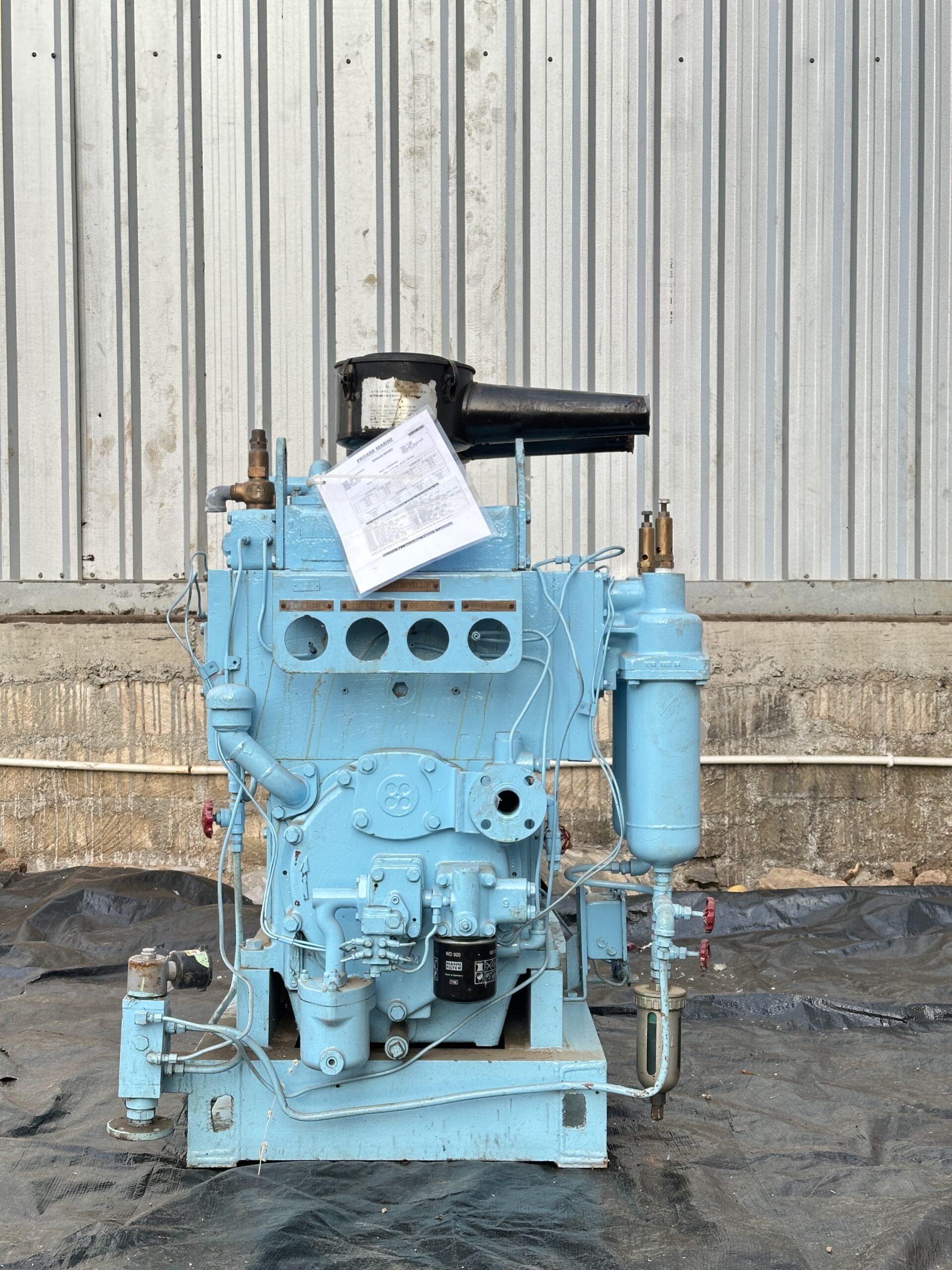

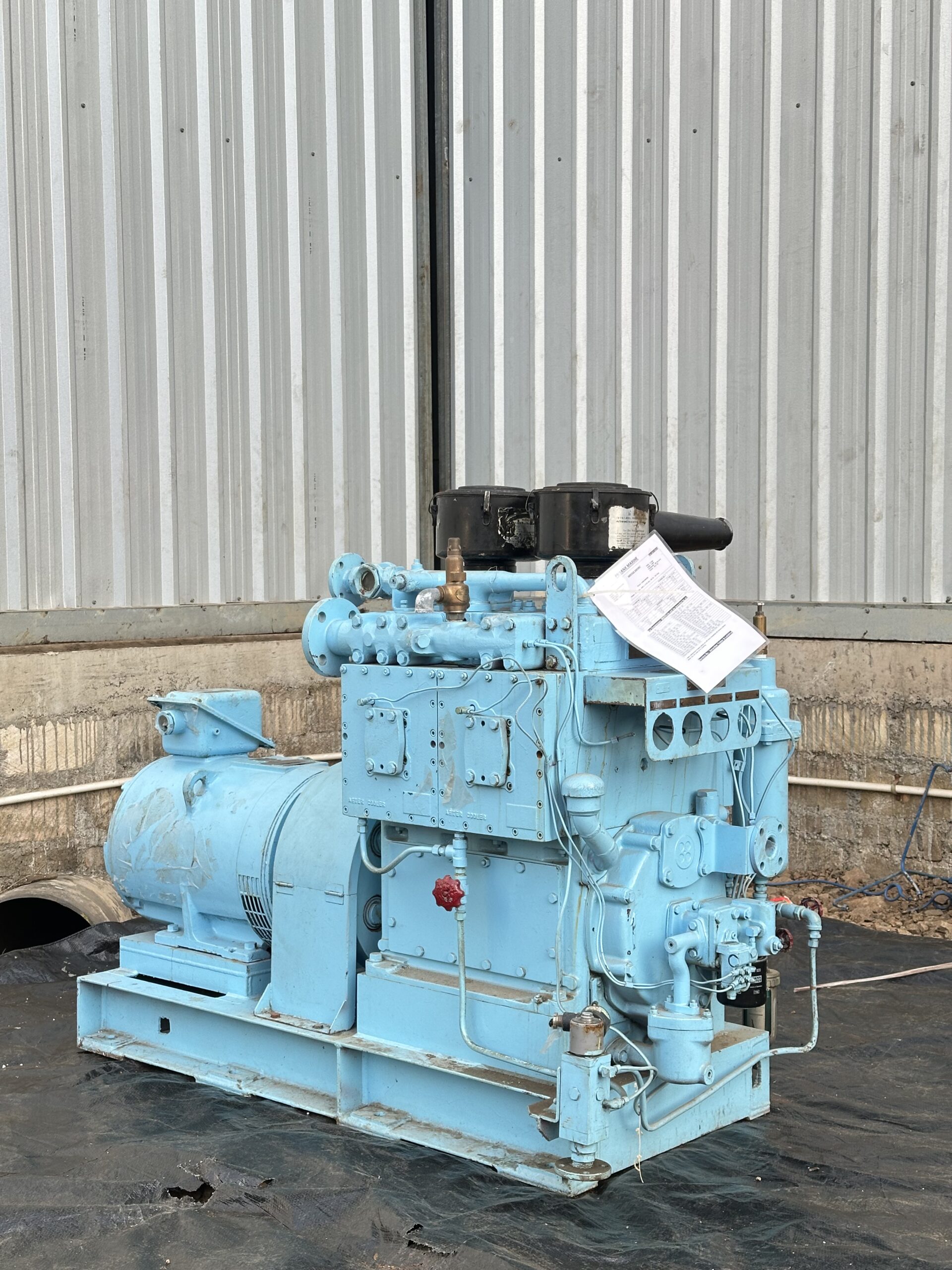

TANABE – H264 – MARINE AIR COMPRESSOR

Category: Tag: Brand:

The Tanabe H-264 is a high-efficiency, vertical two-stage water-cooled marine air compressor, globally recognized for its superior reliability and long-lasting performance. Specifically engineered by Tanabe Pneumatic Machinery for the intense demands of maritime engine rooms, the H-264 is the industry standard for main engine starting air. Its water-cooled design ensures exceptional heat dissipation, allowing for continuous operation even in tropical climates. With a focus on low vibration and a compact footprint, this compressor is ideal for both new vessel builds and retrofits, providing shipowners with a dependable, low-maintenance solution for critical high-pressure air requirements.

Specification

Overview

MODELH 264
CAPACITY170 m³/h
PRESSURE25 kg/cm²
STROKE100
BORE L.P140
BORE H.P115
SPEED1200 RPM
POWER REQUIRED45,5 p.s
TWO STAGEWATER COOLED
