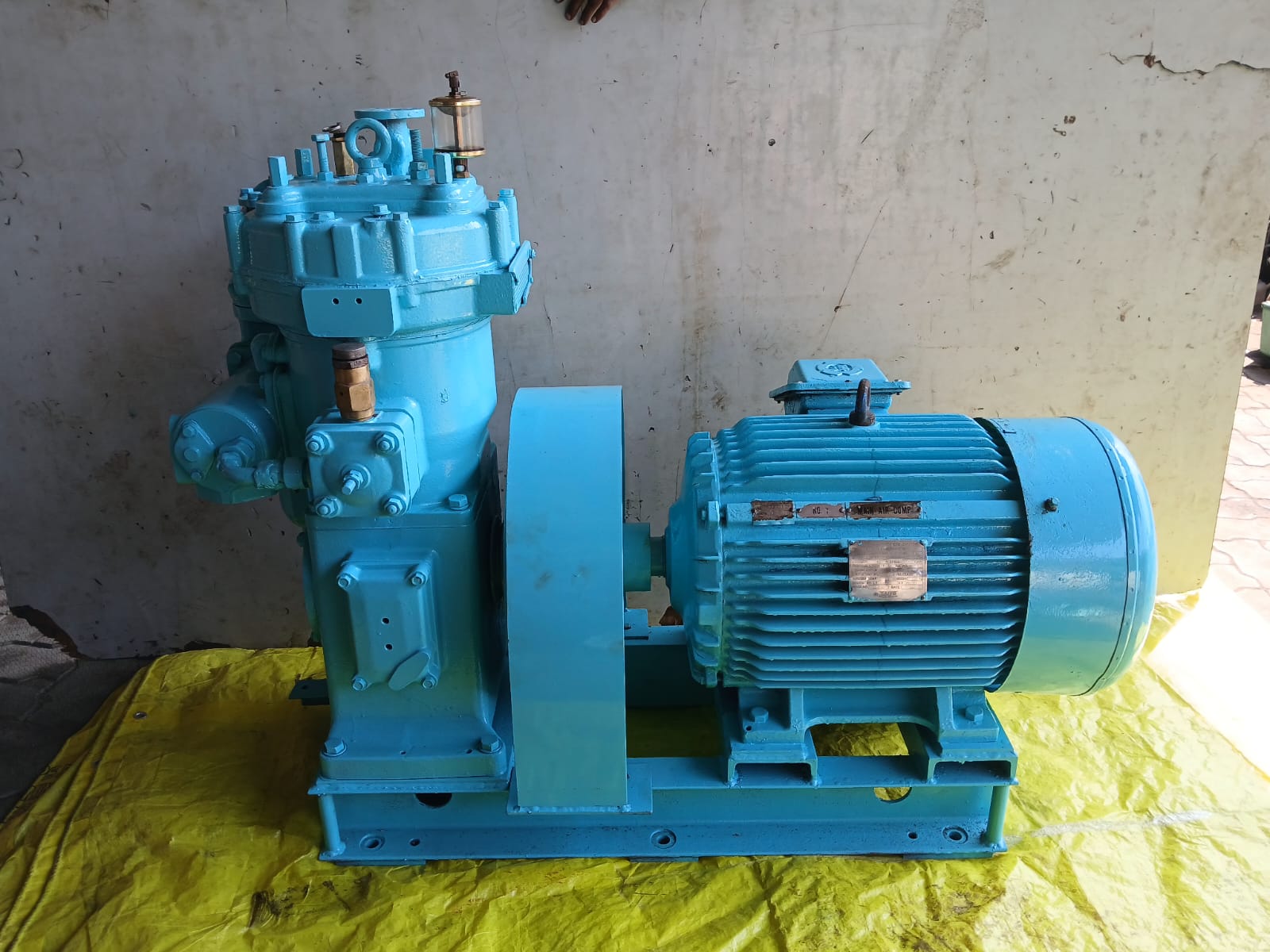

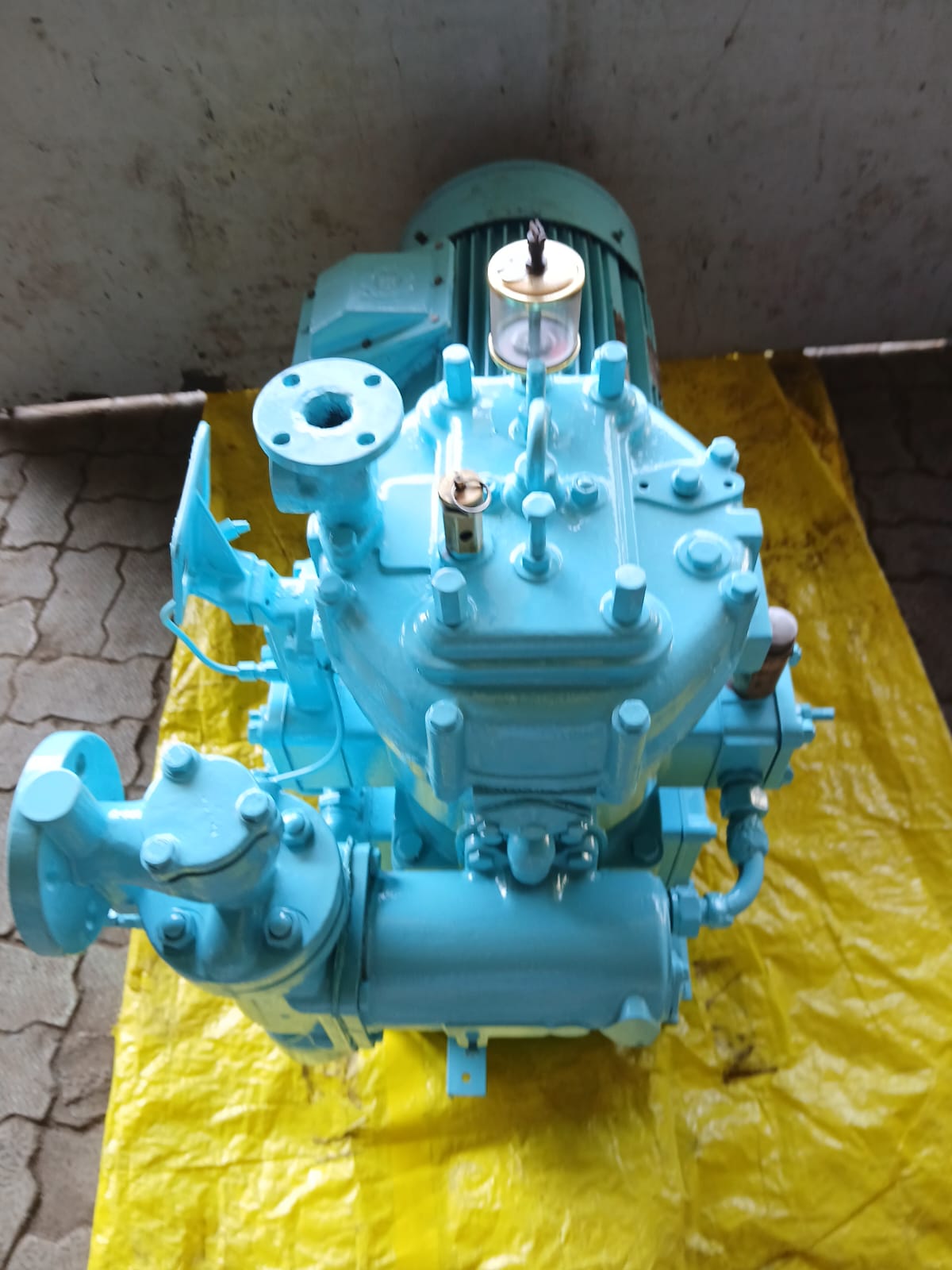

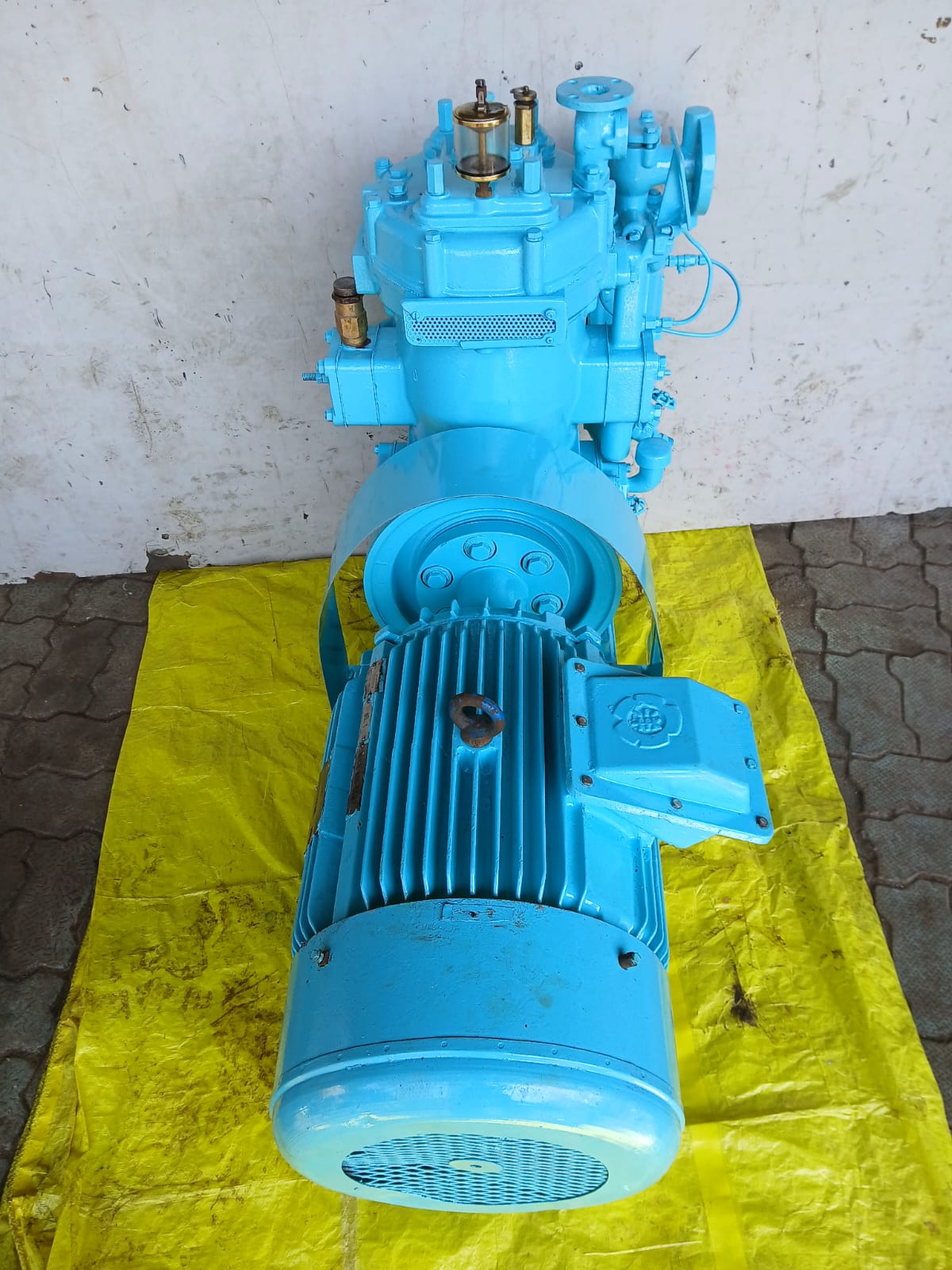

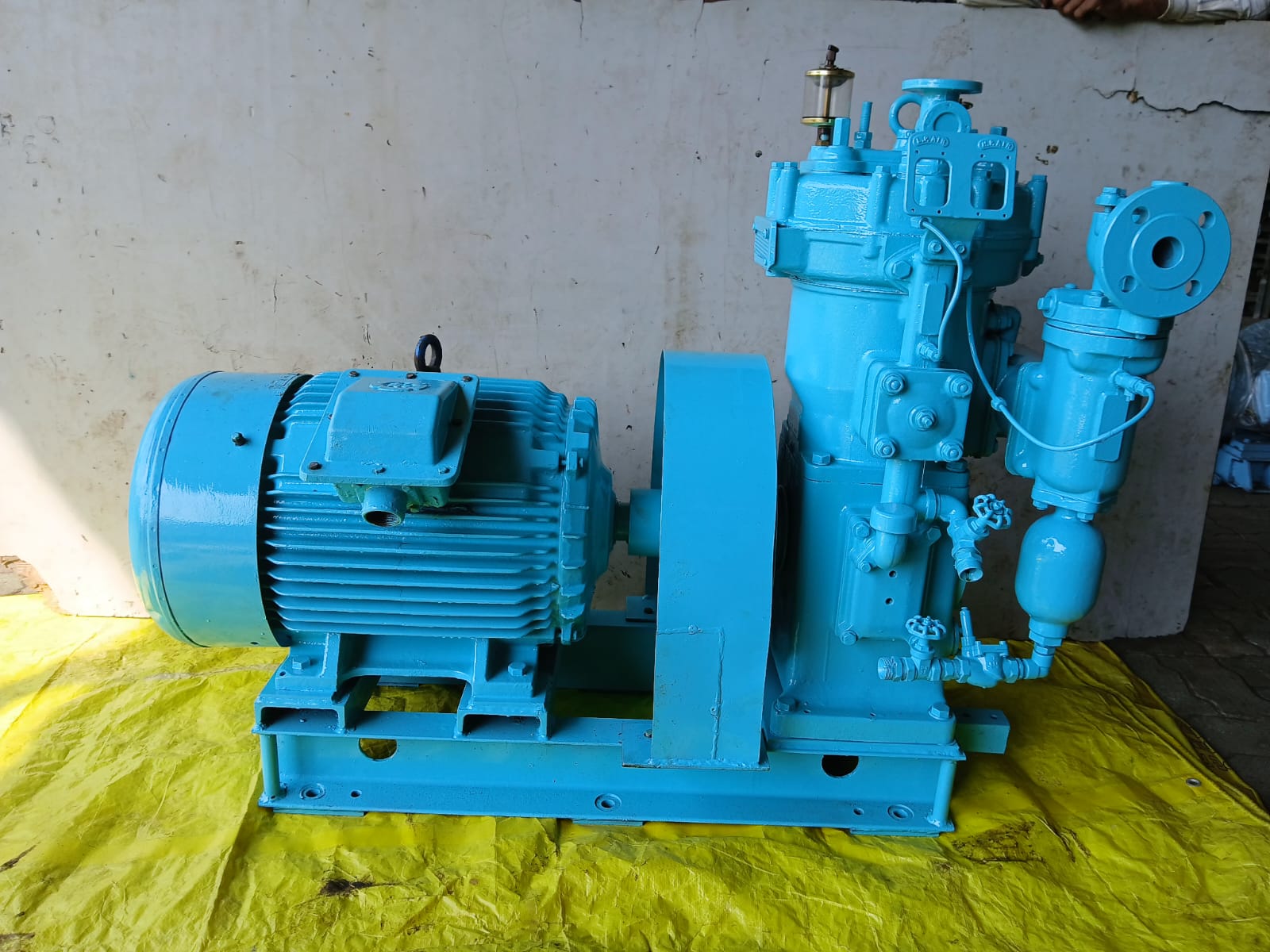

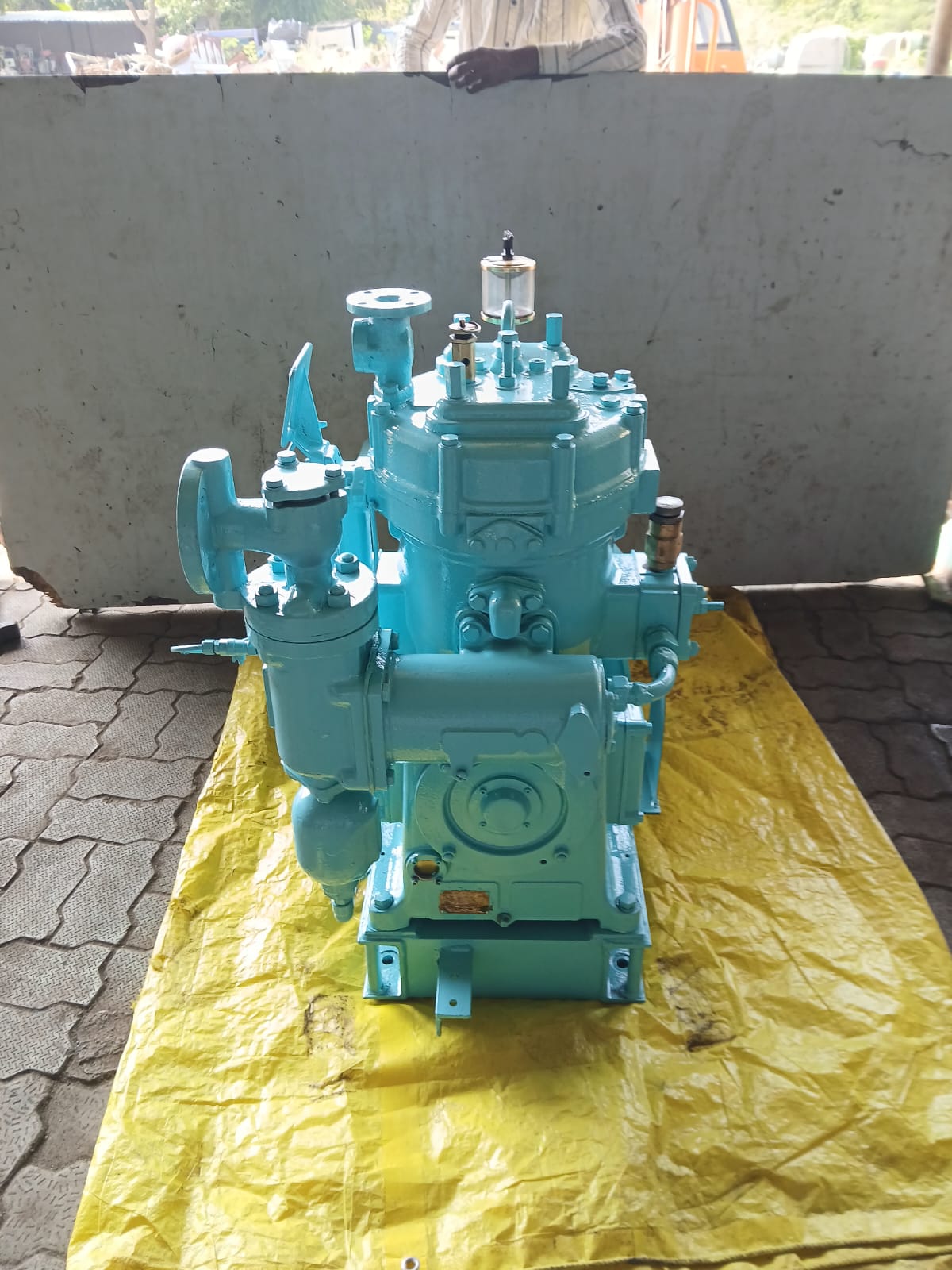

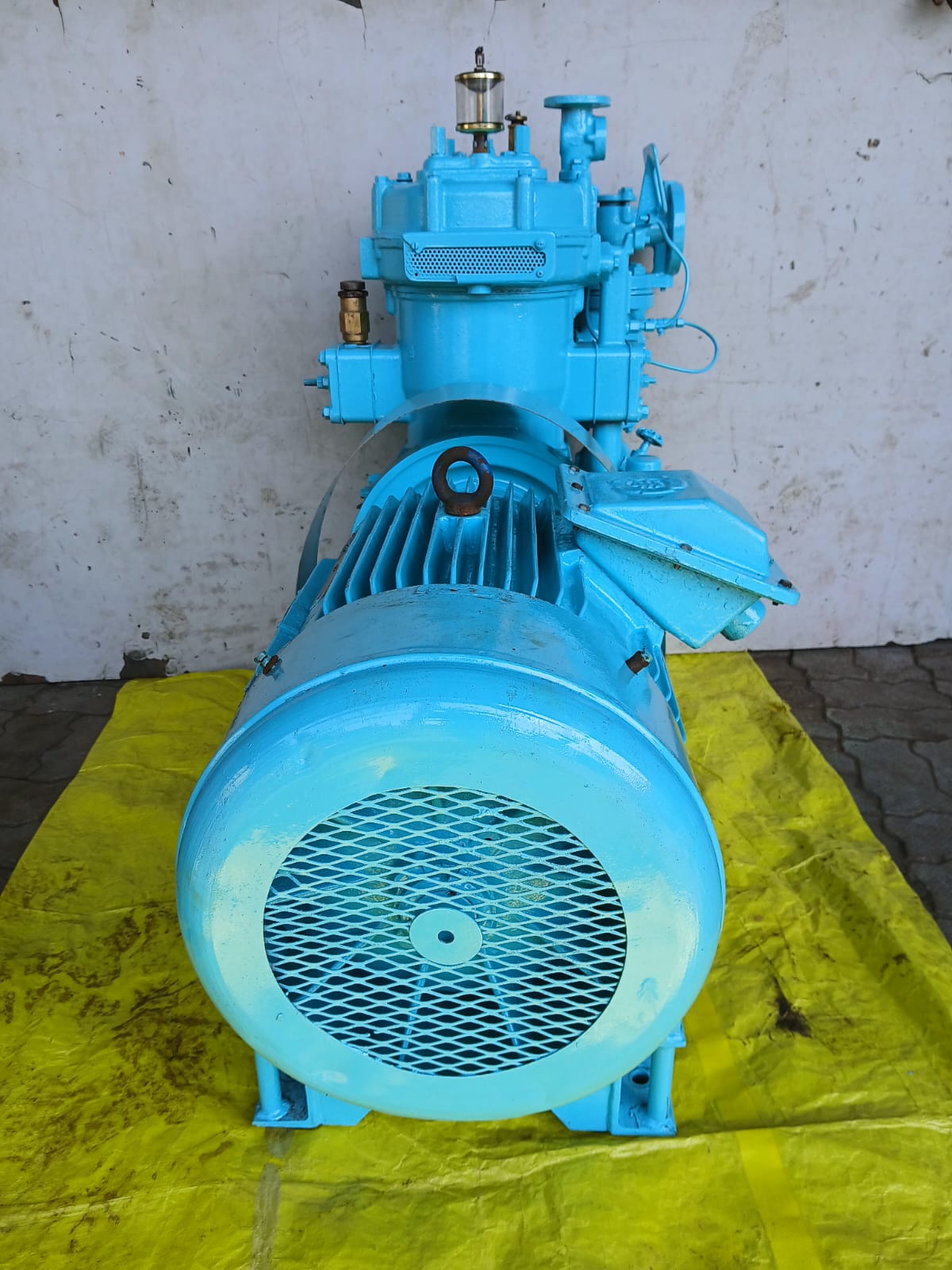

YANMAR – SC20N – MARINE AIR COMPRESSOR
The Yanmar SC20N marine air compressor is a high-efficiency two-stage starting air compressor engineered for marine main engine starting, auxiliary pneumatic systems, and offshore industrial applications. Built by Yanmar, this heavy-duty reciprocating compressor operates at a rated speed of 900 RPM and delivers a maximum working pressure of 25 kg/cm² (25 bar). Powered by a 22.5 PS drive system, the Yanmar SC 20 N air compressor features durable cast-iron construction, precision-machined valve assemblies, and high thermal endurance. Designed to withstand demanding marine engine room conditions, it ensures exceptional volumetric efficiency, low vibration, and continuous-duty operational reliability.
Specification
Overview

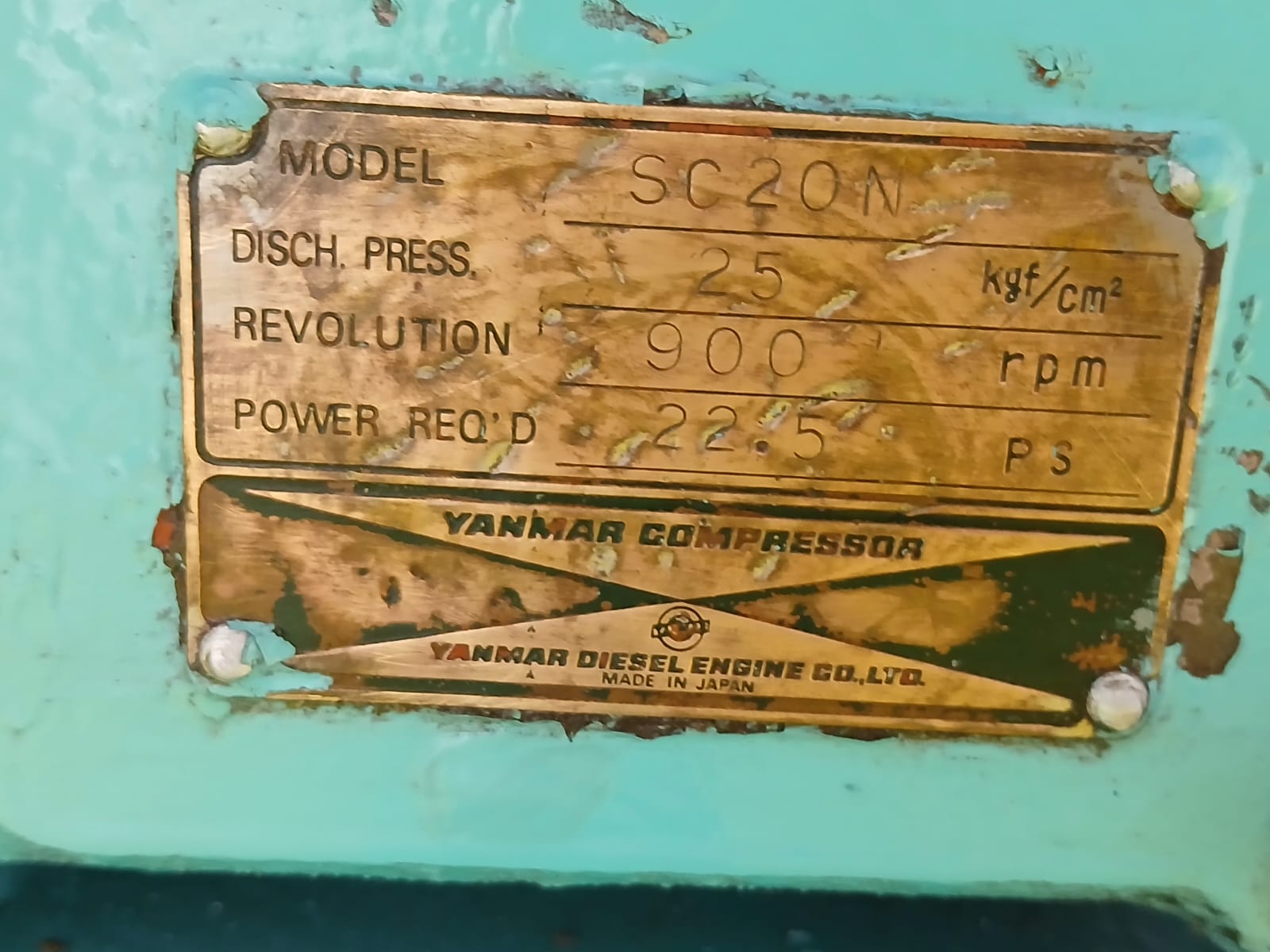

| TYPE | SC20N |
|---|---|
| PRESSURE | 25 KGF/CM² |
| POWER | 22.5 PS |
| REVOLUTION | 900 RPM |

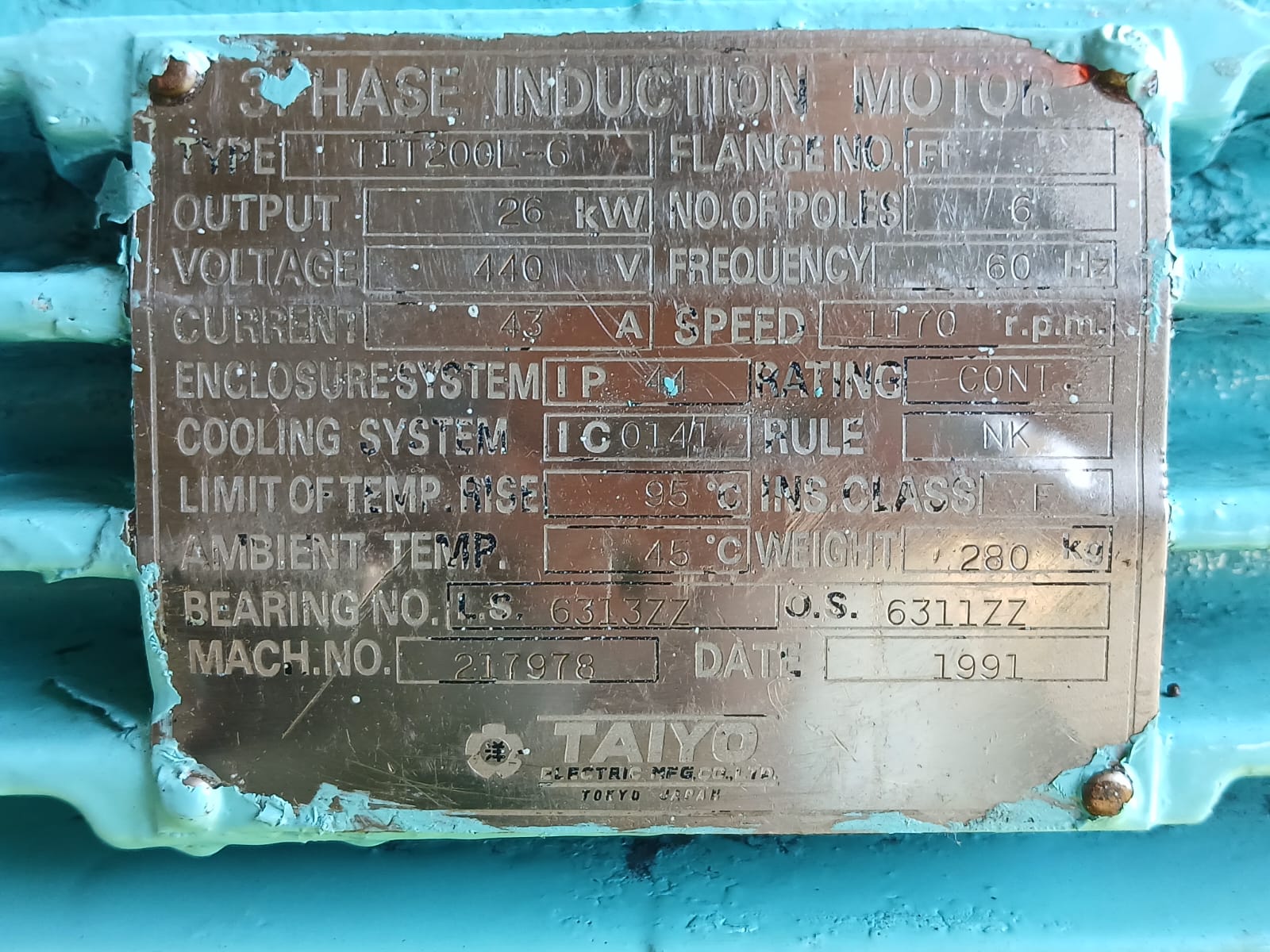

| MOTOR TYPE | TIT200L-6 |
| VOLTAGE | 440 V |
| FREQUENCY | 60 Hz |
| SPEED | 1170 RPM |
