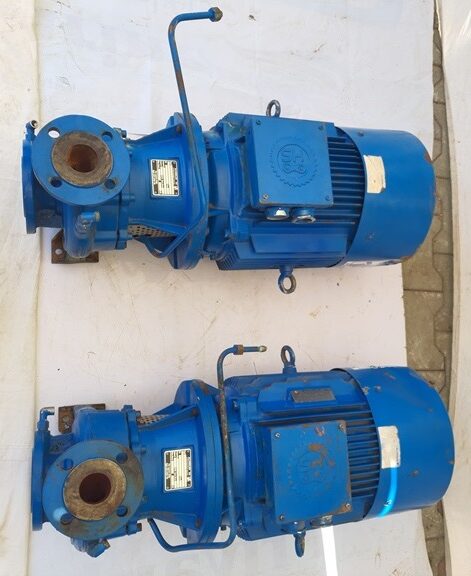

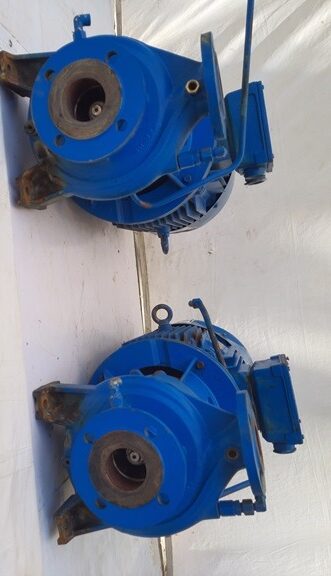

ALLWELIER – NB 50-200 – CENTRIFUGAL PUMP

Category: Tag: Brand:

The Allweiler NB 50-200 is a high-performance, single-stage block centrifugal pump engineered for moving clear, non-aggressive, or mildly contaminated fluids. Utilizing a space-saving, rigid block design, this pump is optimized for space-restricted industrial applications, cooling systems, water treatment, and HVAC networks. It features a robust volute casing, a closed impeller, and a maintenance-free mechanical seal.

Specification

Overview

MODELNB 50-200 U3.1D-W18-ME3-48/350
CAPACITY60 m³/h
TOTAL HEAD80 M
SPEED3528 RPM
POWER19.4 KW
BUILT YEAR2010

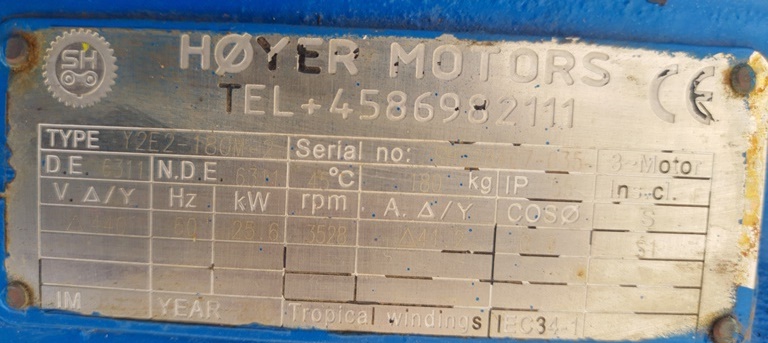

MOTOR MAKEHOYER MOTORS
MOTOR TYPEY2E2-180M-2
MOTOR VOLT440 V
MOTOR HERTZ60 Hz
MOTOR POWER25.6 KW
MOTOR SPEED3528 RPM
