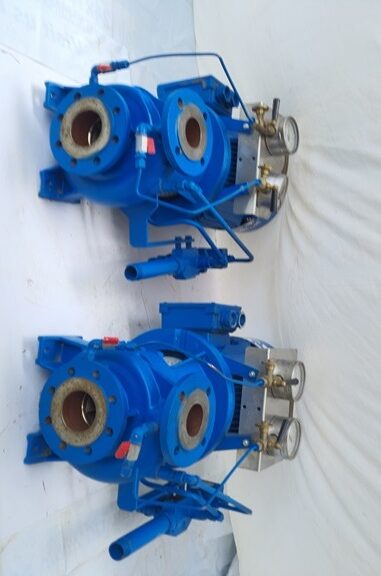

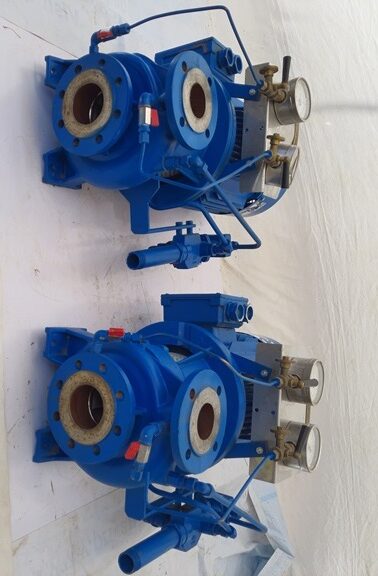

ALLWELIER – NB 65-160 – CENTRIFUGAL PUMP
The Allweiler NB 65-160 is a high-capacity, single-stage volute centrifugal pump featuring a compact block design. Engineered for handling clear, fresh, or slightly contaminated fluids, it is widely utilized across marine applications, cooling systems, industrial water supplies, and HVAC networks. Its space-saving design couples the motor directly to the pump housing via a robust flange, incorporating a closed impeller and a maintenance-free mechanical seal for maximum operational efficiency.
Specification
Overview
| MODEL | NB 65-160U3.1D-W18-42/350-ME3 |
|---|---|
| CAPACITY | 100 m³/h |
| TOTAL HEAD | 30 M |
| SPEED | 3528 RPM |
| POWER | 11.4 KW |
| BUILT YEAR | 2009 |

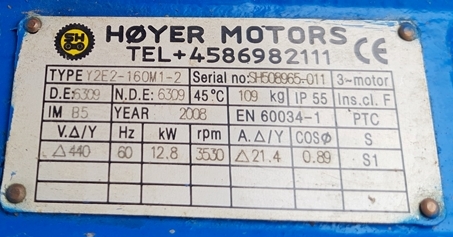

| MOTOR MAKE | HOYER MOTORS |
| MOTOR TYPE | Y2E2-160M1-2 |
| MOTOR VOLT | 440 V |
| MOTOR HERTZ | 60 Hz |
| MOTOR POWER | 12.8 KW |
| MOTOR SPEED | 3530 RPM |
