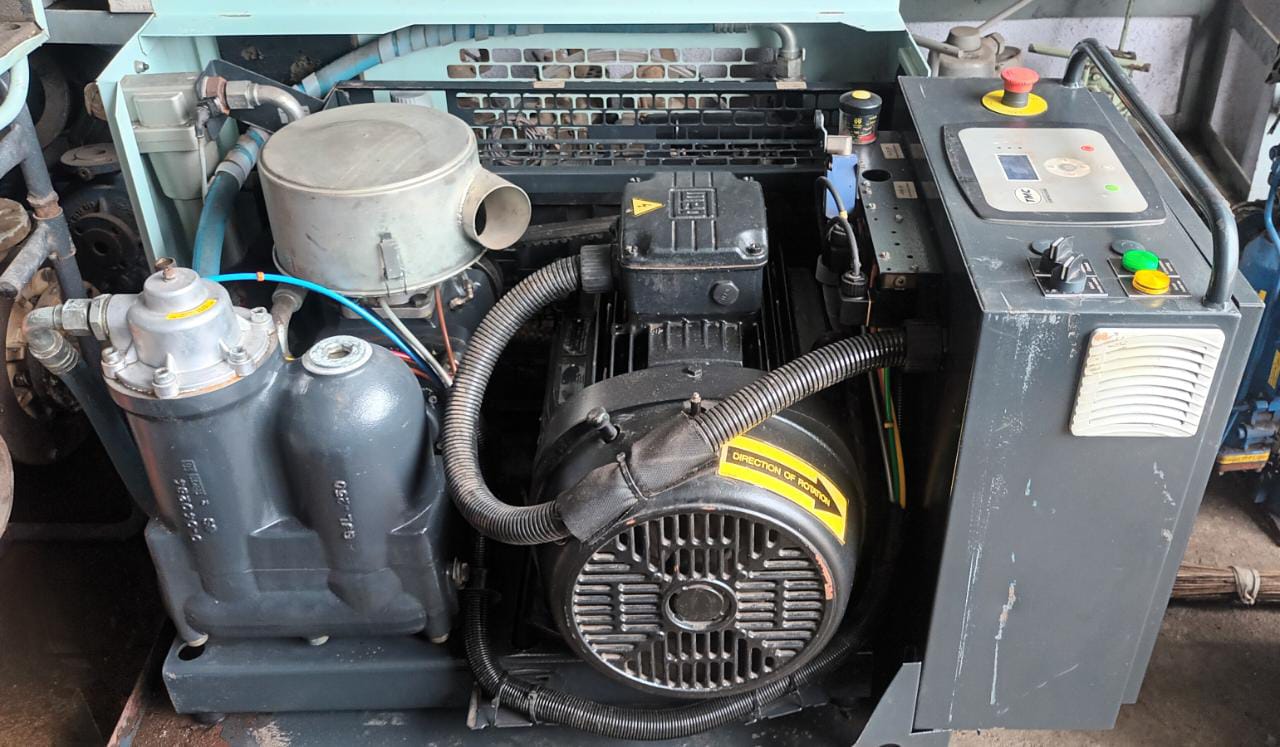

TMC – 26-8 EWNA – SCREW AIR COMPRESSOR UNIT

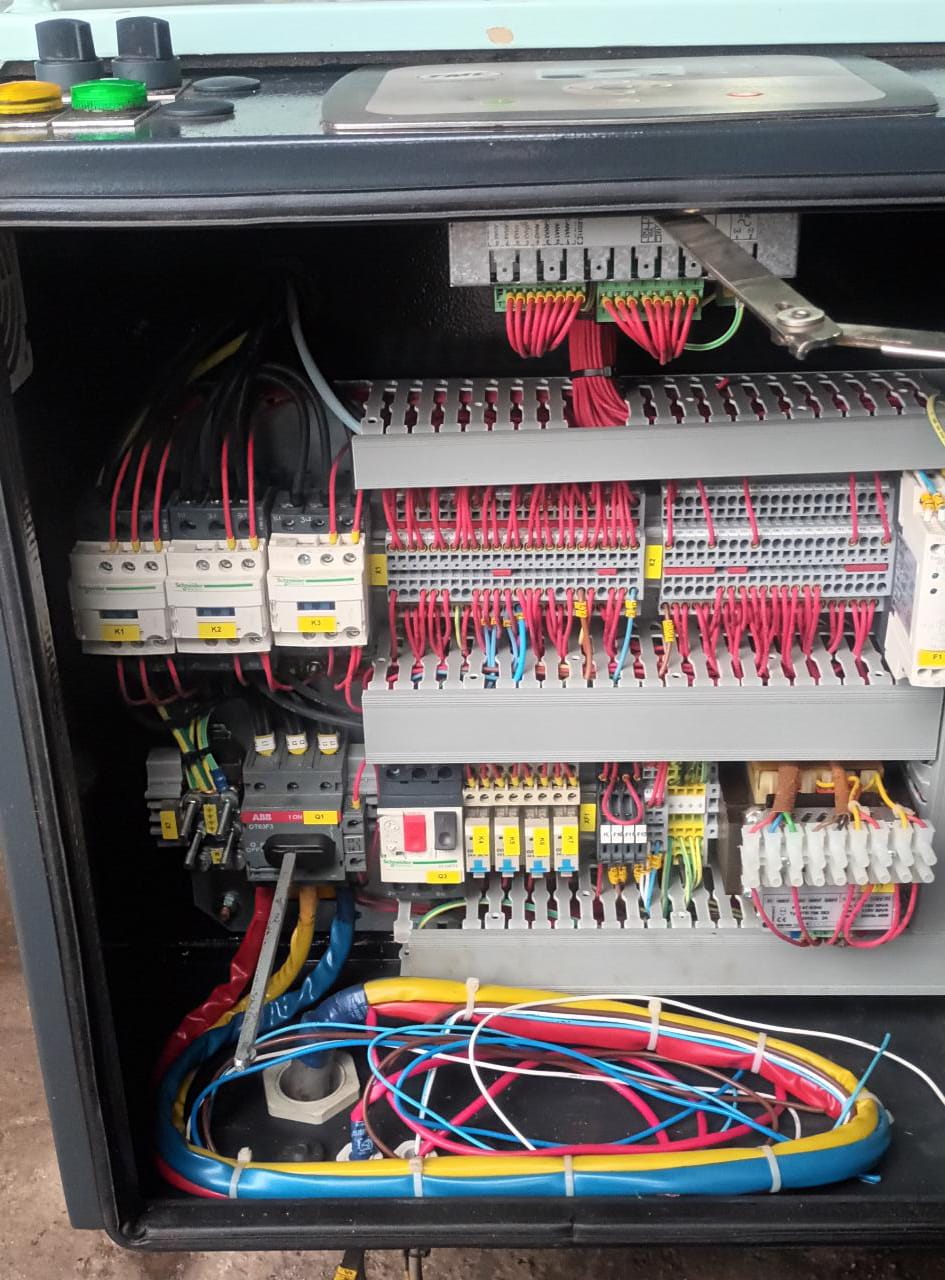

The TMC 26-8 EWNA is a heavy-duty marine rotary screw air compressor engineered by Tamrotor Marine Compressors for continuous-duty operation in harsh offshore environments. Operating at an 8 bar working pressure, this single-stage, oil-lubricated marine screw compressor features efficient water cooling (EWNA), making it ideal for high ambient temperature conditions. Built on a compact skid with an integrated electric motor and control panel, it offers a small footprint and low vibration for easy installation. Designed to provide reliable control and service air for commercial vessels, the TMC 26-8 EWNA compressor unit ensures maximum energy efficiency and low lifecycle maintenance costs.
Specification
Overview
| TYPE | 26-8 EWNA |
|---|---|
| CAPACITY | 204.0 m³/h |
| MAXIMUM PRESSURE | 8 BAR |
| TEST PRESSURE | 13.5 BAR |
| SPEED | 3535 RPM |
| UNIT WEIGHT | 440 KG |
| MOTOR POWER | 26 kW |
| FREQUENCY | 60 Hz |
| VOLTAGE | 440–480 V |
| BUILT YEAR | 2010 |
